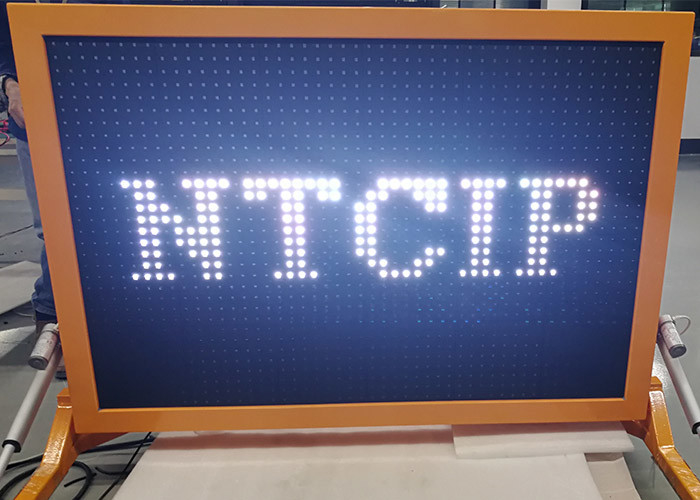

EN12966 P16 RGB LED VMS Signs High Brightness Outdoor Traffic Screen
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | YAHAM |
| Certification: | EN12966、NTCIP |
| Model Number: | YHT-VMS-OT16 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 18 Square Meter/Square Meters |
|---|---|
| Price: | $1200-2000 Square Meter/Square Meters |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 24 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3585 Square Meter/Square Meters Per Month |
|
Detail Information |
|||
| Pixels: | 16mm | Power Supply: | 110-240V AC |
|---|---|---|---|
| Signal Transfer: | Cat 5 Network Cable, RS232,RS485 Optional | Max. Power Consumption: | 250W/m² |
| Store Humidity: | 15%~ 95% | Brightness: | L3,L3*:EN12966 (Red: >3100nits, Green>3720nits, Blue>1240nits, Amber>7440nits, White:>12400nits) |
| High Light: | RGB LED VMS Signs,16mm LED VMS Signs,P16 VMS Outdoor LED Display Screen |
||
Product Description
EN12966 P16 RGB LED VMS Signs High Brightness Outdoor Traffic Screen
EN12966 high brightness p16 rgb led large display screen outdoor led vms traffic sign
Designed and manufactured by YAHAM, the cost effective and P10/P16/P20/P25 Road Side Led Digital Billboard Truck Mounted Folding Traffic Message Car LED VMS Display can play any range of text message,graphics and animations in high visibility color. You can design your own symbols, corporate logos and more.The road side traffic message signs are popular for using in traffic management and advertisement.
Application:

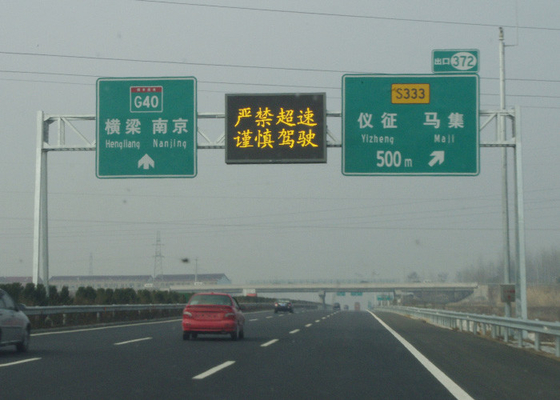

It is widely used in highway tunnel, urban road, dense section of road network of main trunk line, urban road, street, airport, wharf, station and other traffic guidance and related application fields.
the led traffic lens display screen has the characteristics of more uniform light emission, better light mixing effect and more energy saving.
Lens beads using patch technology, quality is more stable, light shape can be customized and other characteristics, mainly used in led variable message signs, Led variable speed limit sign, Etc channel indicator, Led construction guide card and other occasions.
| Item | YHT-VMS-OT10 | YHT-VMS-OT12 | YHT-VMS-OT16 | YHT-VMS-OT20 | YHT-VMS-OT25 |
| Pixel pitch | 10mm | 12mm | 16mm | 20mm | 25mm |
| LED type | 3 in1 SMD+lens | 3 in1 SMD+lens | 3 in1 SMD+lens | 3 in1 SMD+lens | 3 in1 SMD+lens |
| Pixel density | 10000 pixels/m² | 6944 pixels/m² | 3906 pixels/m² | 2500 pixels/m² | 1600 pixels/m² |
| Module dimension | 320×160 mm | 192×192 mm | 256×128 mm | 320×160 mm | 200×200 mm |
| Cabinet material | 2mm aluminum Alloy | ||||
| Screen weight | 65kg/m² | ||||
| Cabinet dimension | 960×960 mm | 960×960 mm | 1024×1024 mm | 960×960 mm | 1000×1000 mm |
| Brightness | L3,L3*:EN12966 (Red: >3100nits, Green>3720nits, Blue>1240nits, Amber>7440nits, White:>12400nits) | ||||
| Brightness adjustment | 32/256 | ||||
| Refresh rate | >90+ Hz | >90+ Hz | >90+ Hz | >90+ Hz | >90+ Hz |
| Display control | Asynchronous control system available | ||||
| Display capacity | Text, image, graphics animations | ||||
| Lifespan | >100000 hrs | >100000 hrs | >100000 hrs | >100000 hrs | >100000 hrs |
| Power supply | 12-24V DC/110-230V AC | ||||
| Max. Power consumption | 400W/m² | 380W/m² | 250W/m² | 220W/m² | 220W/m² |
| Operation temperature | -25~ +60°C | ||||
| Storage temperature | -40~ +80°C | ||||
| Store humidity | 15%~ 95% | 15%~ 95% | 15%~ 95% | 15%~ 95% | 15%~ 95% |
| Protection level | IP56(P3:12966) | IP56(P3:12966) | IP56(P3:12966) | IP56(P3:12966) | IP56(P3:12966) |
| Maintenance method | Rear service | Rear service | Rear service | Rear service | Rear service |
| EN12966 | compliance | compliance | compliance | compliance | compliance |
