High Refresh 3840HZ Rental LED Display Screen Indoor Outdoor Use
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Certification: | FCC 2AZPZ-T25 |
| Model Number: | YR-II |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pieces |
|---|---|
| Price: | USD1250-2000/pieces |
| Packaging Details: | FLIGHT CASE |
| Delivery Time: | 15 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000set/per month |
|
Detail Information |
|||
| Type: | Led Rental Screen | Application: | Outdoor/indoor |
|---|---|---|---|
| Panel Size: | 500*500mm | Pixel Pitch: | 2.6mm,3.91mm,4.81 Mm |
| Advantage4: | Multiple Installation Methods | REFRESH RATE: | 3840HZ |
| High Light: | Rental LED Display Screen,180W Rental LED Display Screen,3840HZ LED Video Wall Display |
||
Product Description
High Refresh 3840HZ Rental LED Display Screen Indoor Outdoor Use
Led Rental Screen Big Background Dj Backstage Back For Concert Video Wall Display
Product Description
YAHAM YR II is a The rental LED display can be used in both indoor or outdoor scenes, it have solutions that can be used indoors and outdoor settings with extremely high compatibility and the ability to switch under different enviroments. light and slim cabinet architecture and quick installation design. The most common rental LED display sizes are 500x500mm and 500x1000mm single LED cabinets.
Specifications
|
ITEM |
T2.6 |
T3.91 |
T4.81 |
|
PIXEL |
2.6 mm |
3.91mm |
4.81mm |
|
LED TYPE |
SMD |
SMD |
SMD |
|
PIXEL DENSITY |
147456 pixel/m2 |
65536 pixel/m2 |
43264 pixel/m2 |
|
MODULE DIMENSION |
250*250 mm |
250*250 mm |
250*250 mm |
|
MODULE RESOLUTION |
96*96 pixels |
64*64 pixels |
52*52 pixels |
|
CABINET DIMENSION |
500*500*65mm |
500*500*65mm |
500*500*65mm |
|
CABINET WEIGHT |
6.2kg |
6.2kg |
6.8kg |
|
ACCESS |
Front/Rear |
Front/Rear |
Rear |
|
INGRESS PROTECTION |
IP43 |
IP43 |
IP65 |
|
BRIGHTNESS |
1200 NITS |
1200 NITS |
5000 NITS |
|
VIEWING ANGLE |
V140/V120 |
V140/V120 |
V140/V120 |
|
MAX.POWER CONSUMPTION |
600W |
640W |
600W |
|
AVE.POWER CONSUMPTION |
180W |
190W |
180W |
|
DRIVIG METHOD |
1/32 |
1/16 |
1/13 |
|
REFRESH RATE |
3840HZ |
3840HZ |
3840HZ |
|
LED LIFESPAN |
100,000 |
100,000 |
100,000 |

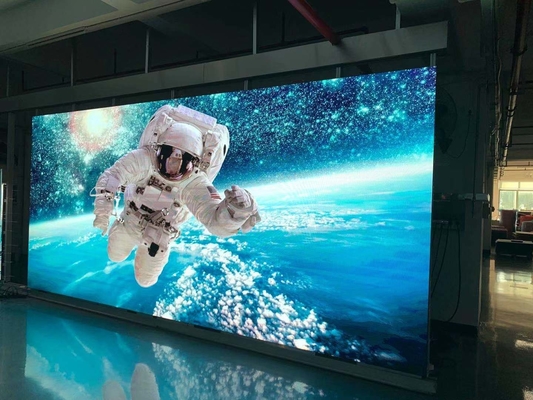

Product Display
Product advantge
-
Materials
Cabinet is made of die-cast aluminum metal, which has good heat dissipation,
high dimensional accuracy, strong structure and deformation.
-

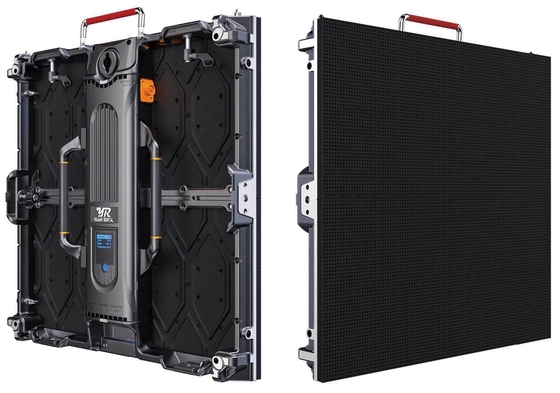

Design
-Carbon fiber handle
-3 positioning pins on each side
-Ground fast installation lock
-Logo customized
-OLED real-time information display
-
Slim Design
Ultra-light with weight only 6.8kg per panel, effectively reduce transportation cost and labour cost.
-
Multiple Installation methods
-
Fast Installation
Fast lock design is adopted around the cabinet . It only takes 10 seconds to connect cabinets.
It ensures installation speed and connection accuracy. It is equipped with positioning pins to
assist alignment to ensure the smoothness of large screen assembly.
Application scenarios
