P6.25 P4.81 Interactive LED Floor Panels Flexible Sensitive Video
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Certification: | 2AZPZ-T25 |
| Model Number: | YH-YR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD1050-2000/piece |
| Packaging Details: | wooden case |
| Delivery Time: | 15 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500pieces/per month |
|
Detail Information |
|||
| TYPE: | Led Video Dance Floor | Application: | Indoor/outdoor |
|---|---|---|---|
| Color: | Full Color | Pixel Pitch: | P2.97/P3.91/P4.81/P5.2/P6.25mm |
| Control Way: | Mobile Phone App Can Manage LED Floor Screens | ||
| High Light: | P4.81 Interactive LED Floor Panels,P6.25 Interactive LED Floor Panels,P4.81 LED Dance Floor Panels |
||
Product Description
P6.25 P4.81 Interactive LED Floor Panels Flexible Sensitive Video
P6.25 P4.81 LED Interactive Sensitive Video Led Dance Floor For Disco Stage
Product description
YAHAM Interactive LED Floor Panels with Flexible shape design: freely spliced and flexible in many forms. Adopted with sensor to obtain interactive function.This product is suitable for a variety of occasions, weddings, entertainment, performances, catwalks, shopping malls, amusement parks, bars, KTV, theme parks, etc.
Specification
|
ITEM |
T2.97 |
T3.91 |
T4.81 |
T6.25 |
|
PIXEL |
2.97mm |
3.91mm |
4.81mm |
6.25mm |
|
LED TYPE |
SMD |
SMD |
SMD |
SMD |
|
PIXEL DENSITY |
112896pixel/m2 |
112896pixel/m2 |
43264pixel/m2 |
24600pixel/m2 |
|
MODULE DIMENSION |
250*250 mm |
250*250 mm |
250*250 mm |
250*250 mm |
|
MODULE RESOLUTION |
84*84 pixels |
64*64 pixels |
52*52 pixels |
40*40 pixels |
|
CABINET DIMENSION |
500*1000mm |
500*1000mm |
500*1000mm |
500*1000mm |
|
CABINET WEIGHT |
25kg |
25kg |
25kg |
25kg |
|
ACCESS |
Rear |
Rear |
Rear |
Rear |
|
INGRESS PROTECTION |
IP66 |
IP66 |
IP66 |
IP66 |
|
BRIGHTNESS |
1800/2800cd/m2 |
1800/2500cd/m2 |
1800/2300cd/m2 |
1800/2200cd/m2 |
|
MAX.POWER CONSUMPTION |
800W/㎡ |
800W/㎡ |
800W/㎡ |
600W/㎡ |
|
AVE.POWER CONSUMPTION |
350W/㎡ |
350W/㎡ |
350W/㎡ |
350W/㎡ |
|
DRIVIG METHOD |
1/21 |
1/16 |
1/13 |
1/10 |
|
REFRESH RATE |
1920/3840 |
1920/3840 |
1920/3840 |
1920/3840 |
|
Input power (V) |
AC100~240 |
AC100~240 |
AC100~240 |
AC100~240 |
|
Working environment |
Indoor |
Indoor |
Indoor |
Indoor |
|
Working temperature (°C) |
-10~40 |
-10~40 |
-10~40 |
-10~40 |
|
Working humidity (%) |
5~95 |
5~95 |
5~95 |
5~95 |
|
High load-bearing |
2T/mñ |
2T/mñ |
2T/mñ |
2T/mñ |

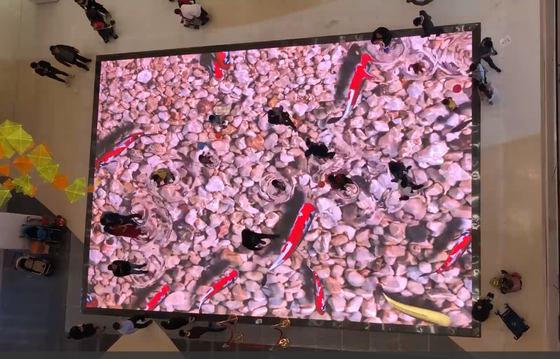

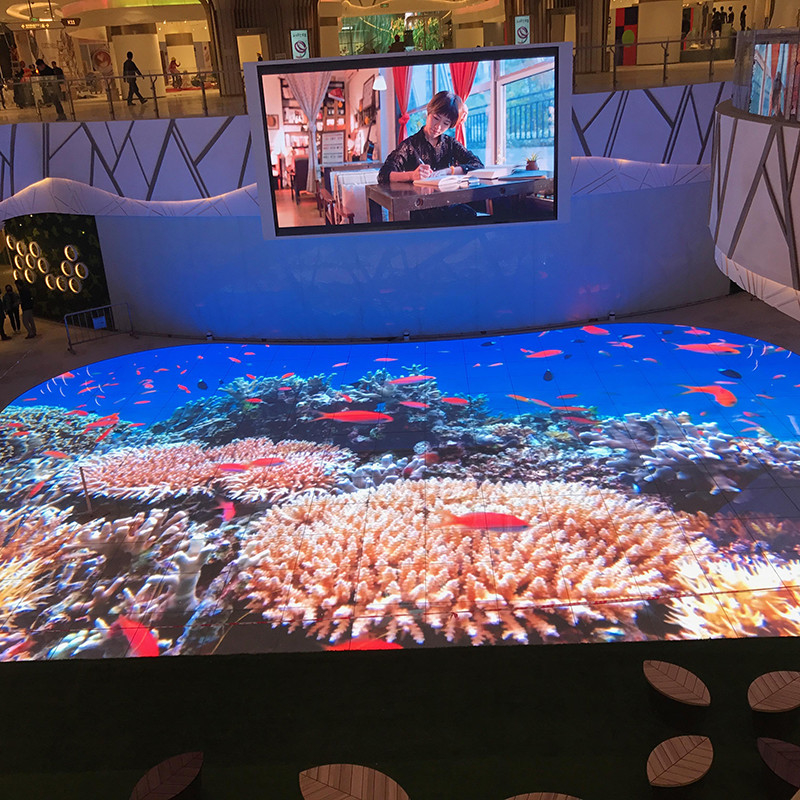

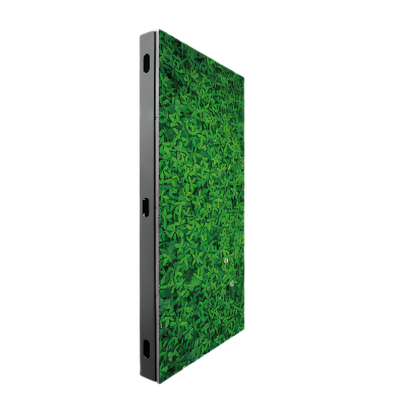

Product Display
Product advantages
-
High Ioading weight
Maximum loading weight is up to 2T/m², and easy to deal with vehicle driving on it.
-
Mobile Phone App Can Manage LED Floor Screens
Dingli is the first company to use mobile phone to manage and control LED floor screen to change
different animations. Moreover, the LED floor screen inserts advertisements when playing animations,
which can creat greater business value for customers.
-
Intelligent interaction
With the smart sensor chips built inside each cabinet, the floor tile display can interact
with people who stand on it. When there are people walking on the screen; the sensor
chip can identify the position of each person and trigger interactive effff ect according
to their movements.
-
Numerous interactive materials
There are fifi ctional worlds, blue ocean, magic lawn, boundless forest, dynamic ocean wave,
various grounds, and virtual beach, etc. 50 types of video material packages, you can also
customize the video yourself.
-
High ingress protection
Module is designed with no screw on its surface, ingress protection rating up to IP66, perfectly
workable with different environments. Show your imagination and dance without restraint
Application scenarios
