EN12966 SMD LED VMS Speed Limit Signs For Highway Road Safety
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Model Number: | YHT-SLS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | USD962-1283/per piece |
| Packaging Details: | non-wooden case with EPE protection |
| Delivery Time: | 35days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500 |
|
Detail Information |
|||
| Cabinet Size: | 800x800mm,1000x1000mm,1200x1200mm | Dimming Level: | 32 |
|---|---|---|---|
| Brightness Control: | Photo Sensors To Monitor The Ambient Light Level; Two Pre-set Luminance Levels, One For Normal Daytime And One For Night-time Or Low Ambient Light Level. | Operating Temperature: | -30°c~+60°c |
| Installation: | Portable & Fixed Mounting Available | Advantage3: | Self –error Detection |
| High Light: | SMD LED VMS Speed Limit,EN12966 VMS Speed Limit,EN12966 Electronic Traffic Sign Boards |
||
Product Description
EN12966 SMD LED VMS Speed Limit Signs For Highway Road Safety
New Speed Limit Boards En12966 Smd With Lens Virtual Message Sign Speed Variable Traffic Led Sign For Highway Road Safet
Product description
LED variable speed limit signs are very common. All drivers will encounter speed limit signs. LED speed limit signs are widely installed on highways, national and provincial roads, airports, logistics parks and other large factories and streets. The LED variable speed limit sign has high brightness and strong penetrability, and is an important road sign for driving at night.
Specification
|
Item |
YHT-LCS |
|
Color configuration |
Red circle, full color variable digit area |
|
Cabinet size |
optional 800 x 800mm / 1000 x 1000mm / 1200 x 1200mm |
|
Cabinet material |
Aluminum alloy |
|
Weight |
45 kg |
|
Viewing angle |
30°(H)/30°(V) |
|
Dimming leve |
32 |
|
Communication |
RS485/ RS232/ GPRS/ Ethernet/ 4G/ 3G |
|
Electric protection |
Overload protection and Short circuit Protection |
|
Installation |
Portable-mounted / Fixed-mounted |
|
Maintenance |
Back access |
|
Operating temperature |
25°C~+65°C |
|
Operating relative humidity |
95%RH(Max.) |
|
Ingress protection |
IP65 |
|
Power consumption (Max) |
50 W |
|
Power supply |
optional 110 - 230AV / 12V - 24V DC |
Product Features:
Auto dimming
Probes are applied to the front and back of the display, it can ensure that the display brightness will change accordingly whether sun exposure to the back of the screen or positive.
Energy-efficient
As a part of our efforts in energy efficiency, Yaham SLS combines Yaham-engineered optical lens technology and industry-leading dual-voltage technology, it can tremendously improves energy efficiency and maximumly lower light pollution.
En12966 compatible
Yaham SLS is a EN12966 based traffic-related Information display and networkable with other displays, terminals and platforms.
Easy installation
To install the speed limit sign, one should just simply spin the lock, no screwing is required.
Remote control
Different signs can be switched remotely and wirelessly. In addition, SLS can also be remotely switched on and off.
Strong cabinet architecture
2mm Aluminum housing, fully welded with internal strength, ensuring perfect screen performance in the harshest environments and severe weather conditions.

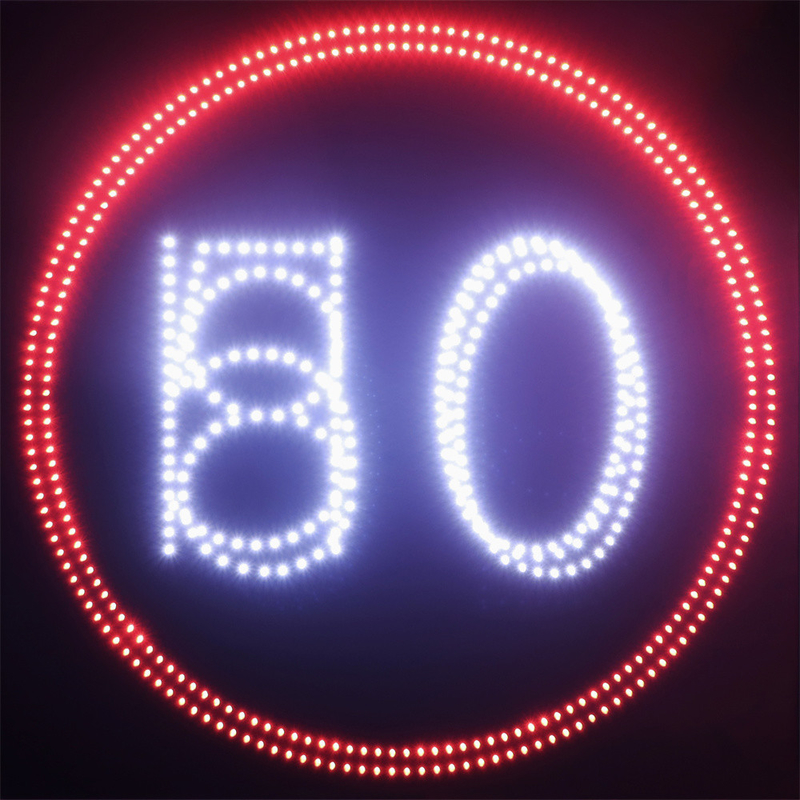

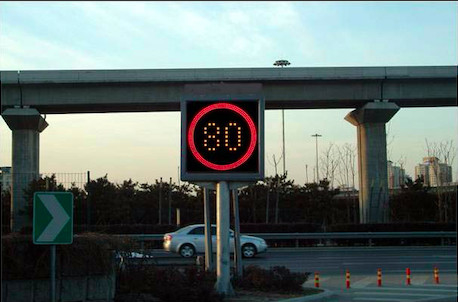

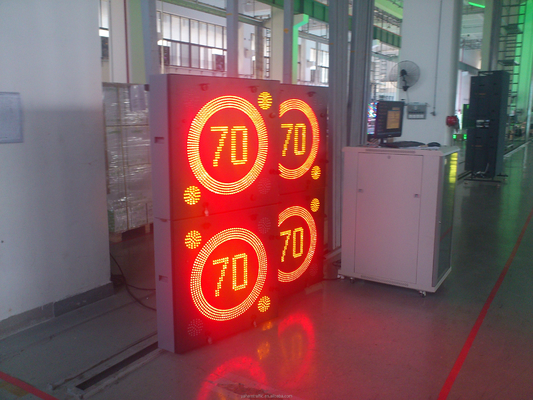

Product display
