OT Series VMS Traffic Signs LED Display Integrated Optical Lens
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Certification: | 2AZPZ-T25 |
| Model Number: | YHT-VMS-OT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD1950-3000/set |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 30days |
| Payment Terms: | Western Union, T/T, L/C, D/P, D/A, MoneyGram |
| Supply Ability: | 1000set/per month |
|
Detail Information |
|||
| Pixel Pitch: | 10mm,12mm,16mm,20mm,25mm,31.25mm | Screen Weight: | 65kg/㎡ |
|---|---|---|---|
| Brightness Adjustment: | 32/256 | Maintenance Method: | Rear Service |
| Compliance: | EN12966 | Feature: | Control System |
| LED Type: | 3 In 1 SMD + Lens | Cabinet Material: | 2mm Aluminum Alloy |
| Display Control: | Asynchronous Contral System Available | Display Capacity: | Text,image,graphics Animations |
| Lifespan: | >100000 Hrs | Power Supply: | 12-24V DC/110-230V AC |
| Operation Temperature: | -25~+60℃ | Storage Temperature: | -40~+80℃ |
| Operating Humidity: | 10%~90% | Store Humidity: | 15%~95% |
| Protection Level: | IP56(P3:12966) | ||
| High Light: | OT VMS Traffic Signs,Optical Lens VMS Traffic Signs,EN12966 Traffic Road Sign |
||
Product Description
OT Series VMS Traffic Signs LED Display Integrated Optical Lens
Yaham Top Quality New Integrated Optical Lens OT Series Traffic Road Safety Sign LED Display Variable Message Signs EN12
Product Description
Road and highway veriable message signs
The Yaham LED variable information sign is installed above the special lane as a supporting equipment for the special lane in the expressway ETC toll collection system. Variable information such as dedicated" and "green lane" are used to remind the driver of the information status of this toll lane.The visual distance is long, and the display content can be clearly seen from 300 meters away. With automatic and manual dimming function, manual 32-level adjustment.
Specification
|
ITEM |
OT16 |
OT20 |
OT25 |
OT31.25 |
|
PIXEL |
16mm |
20 mm |
25 mm |
31.25mm |
|
LED TYPE |
3 in 1SMD+LENS |
3 in 1SMD+LENS |
3 in 1SMD+LENS |
3 in 1SMD+LENS |
|
PIXEL DENSITY |
3906 pixel/m2 |
2500 pixel/m2 |
1600 pixel/m2 |
1024 pixel/m2 |
|
MODULE DIMENSION |
256X128 mm |
320X160 mm |
200 x 200 mm |
250 x 250 mm |
|
MODULE RESOLUTION |
16*8 pixels |
16*8 pixels |
8*8 pixels |
8*8 pixels |
|
CABINET DIMENSION |
1024*1024mm |
960*960mm |
1000*1000mm |
1000*1000mm |
|
CABINET WEIGHT |
65kg |
65kg |
65kg |
65kg |
|
ACCESS |
FRONT /BACK |
FRONT /BACK |
FRONT /BACK |
FRONT /BACK |
|
INGRESS PROTECTION |
IP65 |
IP65 |
IP65 |
IP65 |
|
BRIGHTNESS |
12400 NITS |
12400 NITS |
12400 NITS |
12400 NITS |
|
VIEWING ANGLE |
H15/-15 V8/-10 |
H15/-15 V8/-10 |
H15/-15 V8/-10 |
H15/-15 V8/-10 |
|
MAX.POWER CONSUMPTION |
250W |
220W |
220W |
220W |
|
AVE.POWER CONSUMPTION |
80W |
70W |
70W |
70W |
|
DRIVIG METHOD |
STATIC |
STATIC |
STATIC |
STATIC |
|
DISPLAY CONTROL |
Asynchronous control |
Asynchronous control |
Asynchronous control |
Asynchronous control |
|
LED LIFESPAN |
100,000 |
100,000 |
100,000 |
100,000 |
Product Advantages
-
New Integrated Optical Len
-
Improved flatness
-
High color consistency
-
Better contrast ratio
-
Effortless replace
-
Thinner cabinet
-
High stability
-
Global positioning system
-
Self-diagnosis and failure report
-
High protection
-
Customized color and sizes
Wireless and remote control

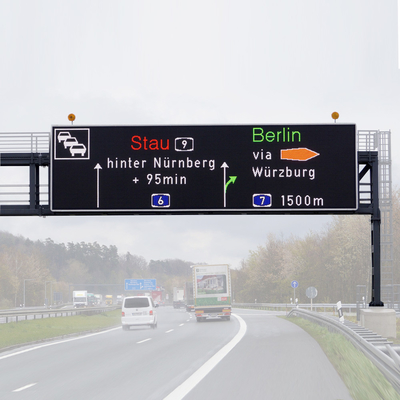

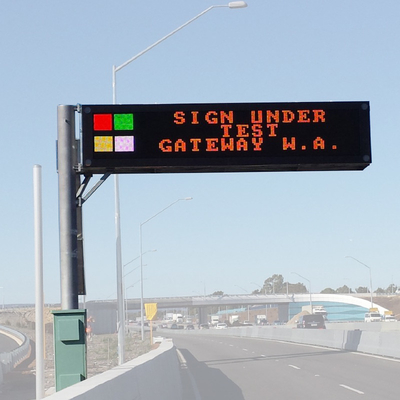

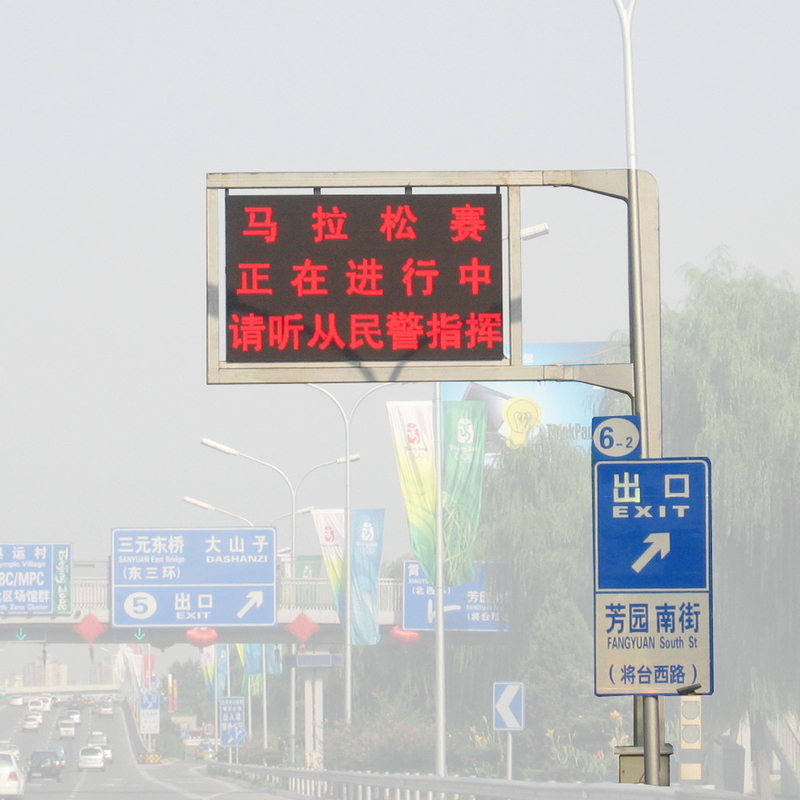

Application scenario
