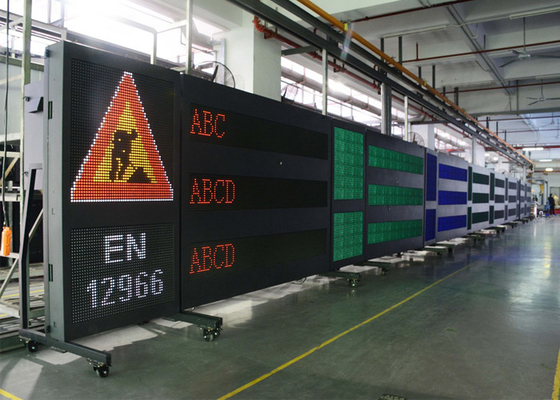

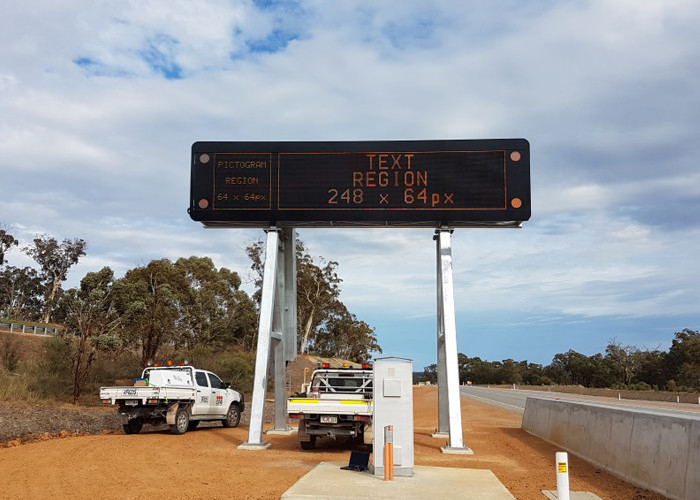

Electronic Variable Message Signs LED Traffic Display For Motorways Tunnels Bridges
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | YAHAM |
| Certification: | EN12966、NTCIP |
| Model Number: | YHT-VMS-OT16 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 7 Square Meter/Square Meters |
|---|---|
| Price: | $1230-2250 Square Meter/Square Meters |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 19 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3370 Square Meter/Square Meters Per Month |
|
Detail Information |
|||
| Pixels: | 16mm | Contrast Ratio: | R3: EN12966 |
|---|---|---|---|
| Signal Transfer: | Cat 5 Network Cable, RS232,RS485 Optional | Viewing Angle: | H 15/-15 Deg. / V 8/-10 Deg.(B6:EN12966) |
| Cabinet Material: | 2mm Aluminum Alloy | Store Humidity: | 15%~ 95% |
| High Light: | NTCIP Variable Message Signs,Bridges Variable Message Signs,Motorways led traffic display |
||
Product Description
Electronic and Variable Message Signs for Roads Highways Motorways Tunnels and Bridges LED Traffic Screen Display
traffic managers publish traffic conditions to help drivers learn about upcoming delays. operations staff work with partner agencies to coordinate comprehensive message plans and keep motorists informed about travel lane blockage information, travel times, scheduled construction activities, safety messages and special events.
1) designed for high visibility and guaranteed to get your message across. It displays large format text and graphics which advise motorists of current traffic conditions, safety messages and upcoming events.
2) The Freeway VMS signs are designed and manufactured to suit our customers’ specific requirements and we can provide custom engineering solutions for projects of all sizes. We are familiar with the logistics of remote site preparation and the transportation of large electronic equipment in a careful and timely manner for installation and commissioning on site.
3) With low maintenance requirements, superior reliability and power efficiency, our VMS signs are designed for a long service life and ideally suited to harsh environmental conditions.
LED VMS (Variable Message Signs) signs are electronic signs used to display messages to drivers on the roadways. They have several features that make them advantageous over traditional signs, including:
High visibility: LED VMS signs are highly visible, making them easy to read from a distance and in low light conditions.
Dynamic Message Signs (DMS) provide motorists with information about traffic tie-ups, congestion and advise motorists to seek alternate routes when there are major delays or road closures.
The DMS message display is controlled by a built-in cell phone modem. Commands to the signs are issued by the MOC in order to inform approaching motorists of current traffic alerts.
| Item | YHT-VMS-OT12 | YHT-VMS-OT16 |
| Pixel pitch | 12mm | 16mm |
| LED type | 3 in1 SMD+lens | 3 in1 SMD+lens |
| Pixel density | 6944 pixels/m² | 3906 pixels/m² |
| Module dimension | 192×192 mm | 256×128 mm |
| Module resolution | 16×16 | 16×8 |
| Cabinet material | 2mm aluminum Alloy | |
| Screen weight | 65kg/m² | |
| Cabinet dimension | 960×960 mm | 1024×1024 mm |
| Brightness | L3,L3*:EN12966 (Red: >3100nits, Green>3720nits, Blue>1240nits, Amber>7440nits, White:>12400nits) | |
| Brightness adjustment | 32/256 | |
| Color coordinates | C2: EN12966 | C2: EN12966 |
| Refresh rate | >90+ Hz | >90+ Hz |
| Display control | Asynchronous control system available | |
| Display capacity | Text, image, graphics animations | |
| Lifespan | >100000 hrs | >100000 hrs |
| Power supply | 12-24V DC/110-230V AC | |
| Max. Power consumption | 380W/m² | 250W/m² |
| Avg. Power consumption | 120W/m² | 80W/m² |
| Storage temperature | -40~ +80°C | |
| Store humidity | 15%~ 95% | 15%~ 95% |
| Protection level | IP56(P3:12966) | IP56(P3:12966) |
| Maintenance method | Rear service | Rear service |
| EN12966 | compliance | compliance |
