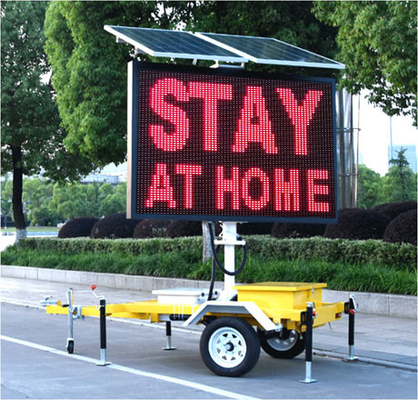

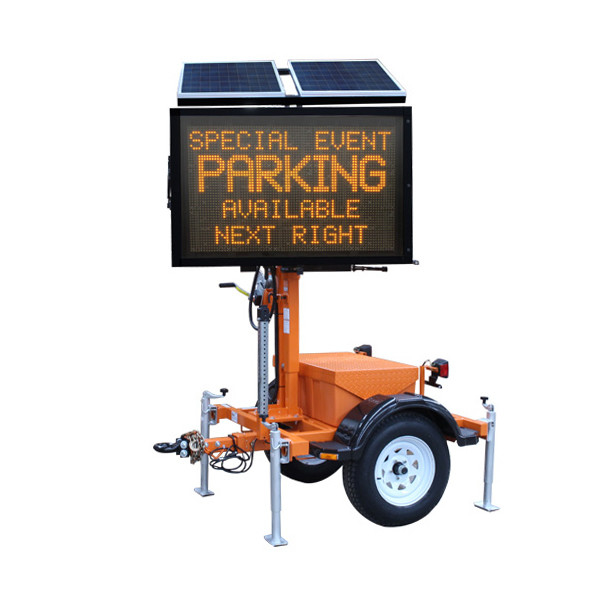

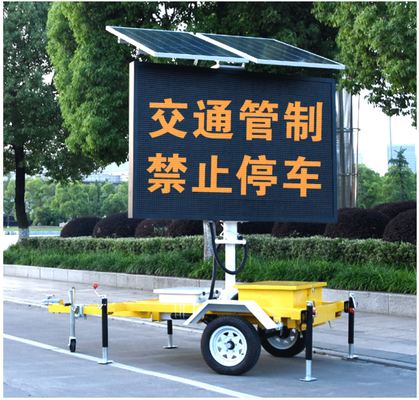

Outdoor EN12966 VMS Trailer Signs Solar Powered Traffic LED Screen
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Certification: | 2AZPZ-T25 |
| Model Number: | YHT-VMS-OT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD1500-2000/set |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 30days |
| Payment Terms: | Western Union, T/T, L/C, D/P, D/A, MoneyGram |
| Supply Ability: | 1000set/per month |
|
Detail Information |
|||
| Pixel Pitch: | 10mm,12mm,16mm,20mm,25mm,31.25mm | LED Type: | 3 In 1 SMD + Lens |
|---|---|---|---|
| Cabinet Material: | 2mm Aluminum Alloy | Screen Weight: | 65kg/㎡ |
| Brightness Adjustment: | 32/256 | Color Coordinates: | C2:EN12966 |
| Display Control: | Asynchronous Contral System Available | Display Capacity: | Text,image,graphics Animations |
| Lifespan: | >100000 Hrs | Power Supply: | 12-24V DC/110-230V AC |
| Operation Temperature: | -25~+60℃ | Storage Temperature: | -40~+80℃ |
| Operating Humidity: | 10%~90% | Store Humidity: | 15%~95% |
| Protection Level: | IP56(P3:12966) | Maintenance Method: | Rear Service |
| Compliance: | EN12966 | Feature: | Control System |
| High Light: | EN12966 VMS Trailer Signs,10mm VMS Trailer Signs,EN12966 LED Trailer Screen |
||
Product Description
Outdoor EN12966 VMS Trailer Signs Solar Powered Traffic LED Screen
Outdoor Led Trailer Screen EN12966 Traffic Vms Trailer Solar Powered STOP Traffic Sign Wifi Control Traffic Road Emergen
Specification
| ITEM | OT16 | OT20 | OT25 | OT31.25 |
| PIXEL | 16mm | 20 mm | 25 mm | 31.25m |
| LED TYPE | 3 in 1SMD+LENS | 3 in 1SMD+LENS | 3 in 1SMD+LENS | 3 in 1SMD+LENS |
| PIXEL DENSITY | 3906 pixel/m2 | 2500 pixel/m2 | 1600 pixel/m2 | 1024 pixel/m2 |
| MODULE DIMENSION | 256X128 mm | 320X160 mm | 200 x 200 mm | 250 x 250 mm |
| MODULE RESOLUTION | 16*8 pixels | 16*8 pixels | 8*8 pixels | 8*8 pixels |
| CABINET DIMENSION | 1024*1024mm | 960*960mm | 1000*1000mm | 1000*1000mm |
| CABINET WEIGHT | 65kg | 65kg | 65kg | 65kg |
| ACCESS | FRONT /BACK | FRONT /BACK | FRONT /BACK | FRONT /BACK |
| INGRESS PROTECTION | IP65 | IP65 | IP65 | IP65 |
| BRIGHTNESS | 12400 NITS | 12400 NITS | 12400 NITS | 12400 NITS |
| VIEWING ANGLE | H15/-15 V8/-10 | H15/-15 V8/-10 | H15/-15 V8/-10 | H15/-15 V8/-10 |
| MAX.POWER CONSUMPTION | 250W | 220W | 220W | 220W |
| AVE.POWER CONSUMPTION | 80W | 70W | 70W | 70W |
| DRIVIG METHOD | STATIC | STATIC | STATIC | STATIC |
| DISPLAY CONTROL | Asynchronous control | Asynchronous control | Asynchronous control | Asynchronous control |
| LED LIFESPAN | 100,000 | 100,000 | 100,000 | 100,000 |
Product Advantages
- New Integrated Optical Len
- Improved flatness
- High color consistency
- Better contrast ratio
- Effortless replace
- Thinner cabinet
- High stability
- Global positioning system
- Self-diagnosis and failure report
- High protection
- Customized color and sizes
Wireless and remote control

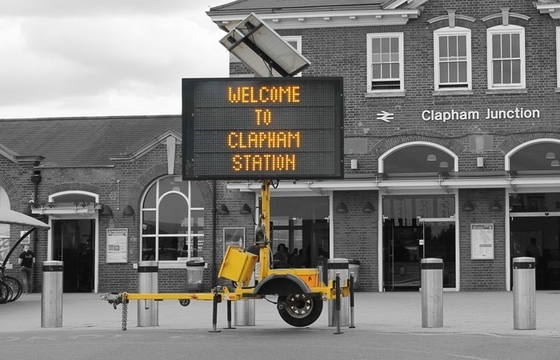

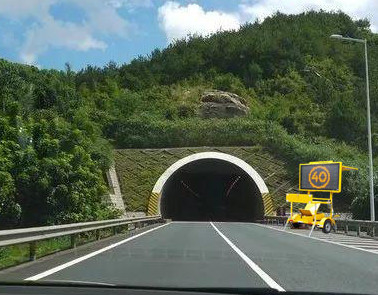

Application scenario
