Solar LED Portable Variable Message Signs trailer mounted boards
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Certification: | 2AZPZ-T25 |
| Model Number: | YHT-VMS-OT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD1500-2000/set |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 30days |
| Payment Terms: | Western Union, T/T, L/C, D/P, D/A, MoneyGram |
| Supply Ability: | 1000set/per month |
|
Detail Information |
|||
| Screen Weight: | 65kg/㎡ | Brightness Adjustment: | 32/256 |
|---|---|---|---|
| Lifespan: | >100000 Hrs | Power Supply: | 12-24V DC/110-230V AC |
| Operating Humidity: | 10%~90% | Store Humidity: | 15%~95% |
| High Light: | Solar LED Portable Variable Message Signs,P16 Trailer Mounted Message Boards,P25 LED Variable Message Signs |
||
Product Description

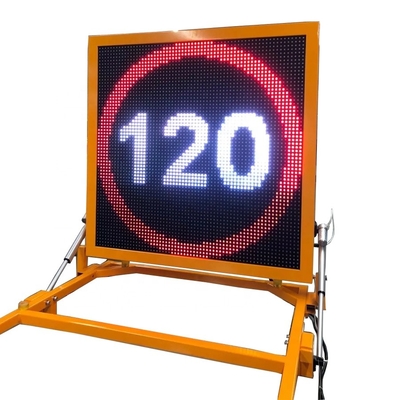

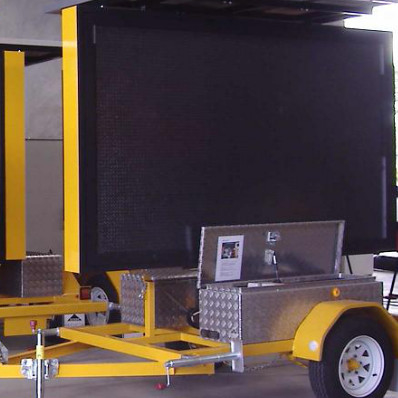

Solar LED Portable Variable Message Signs Trailer Mounted Boards
Solar LED Portable Variable Message Signs Mobile Screen Trailer Mounted VMS Boards
Product Description
EN12966 OUTDOOR TRAFFIC LED TRAILER
Yaham mobile trailer led screen, to ensure the clearness of graphics and texts, as to the outdoor display within 100sqm,the same level of red,green and blue LED lamps with the same brightness( ±10%)and wave length( ±2.5nm) are chosen. T10 Module design makes it convenient to assemble and also ensure that the cabinets are nice-looking.
Specification
| ITEM | OT16 | OT20 | OT25 | OT31.25 |
| PIXEL | 16mm | 20 mm | 25 mm | 31.25mm |
| LED TYPE | 3 in 1SMD+LENS | 3 in 1SMD+LENS | 3 in 1SMD+LENS | 3 in 1SMD+LENS |
| PIXEL DENSITY | 3906 pixel/m2 | 2500 pixel/m2 | 1600 pixel/m2 | 1024 pixel/m2 |
| MODULE DIMENSION | 256X128 mm | 320X160 mm | 200 x 200 mm | 250 x 250 mm |
| MODULE RESOLUTION | 16*8 pixels | 16*8 pixels | 8*8 pixels | 8*8 pixels |
| CABINET DIMENSION | 1024*1024mm | 960*960mm | 1000*1000mm | 1000*1000mm |
| CABINET WEIGHT | 65kg | 65kg | 65kg | 65kg |
| ACCESS | FRONT /BACK | FRONT /BACK | FRONT /BACK | FRONT /BACK |
| INGRESS PROTECTION | IP65 | IP65 | IP65 | IP65 |
| BRIGHTNESS | 12400 NITS | 12400 NITS | 12400 NITS | 12400 NITS |
| VIEWING ANGLE | H15/-15 V8/-10 | H15/-15 V8/-10 | H15/-15 V8/-10 | H15/-15 V8/-10 |
| MAX.POWER CONSUMPTION | 250W | 220W | 220W | 220W |
| AVE.POWER CONSUMPTION | 80W | 70W | 70W | 70W |
| DRIVIG METHOD | STATIC | STATIC | STATIC | STATIC |
| DISPLAY CONTROL | Asynchronous control | Asynchronous control | Asynchronous control | Asynchronous control |
| LED LIFESPAN | 100,000 | 100,000 | 100,000 | 100,000 |
Product Advantages
- New Integrated Optical Len
- Improved flatness
- High color consistency
- Better contrast ratio
- Effortless replace
- Thinner cabinet
- High stability
- Global positioning system
- Self-diagnosis and failure report
- High protection
- Customized color and sizes
Wireless and remote control

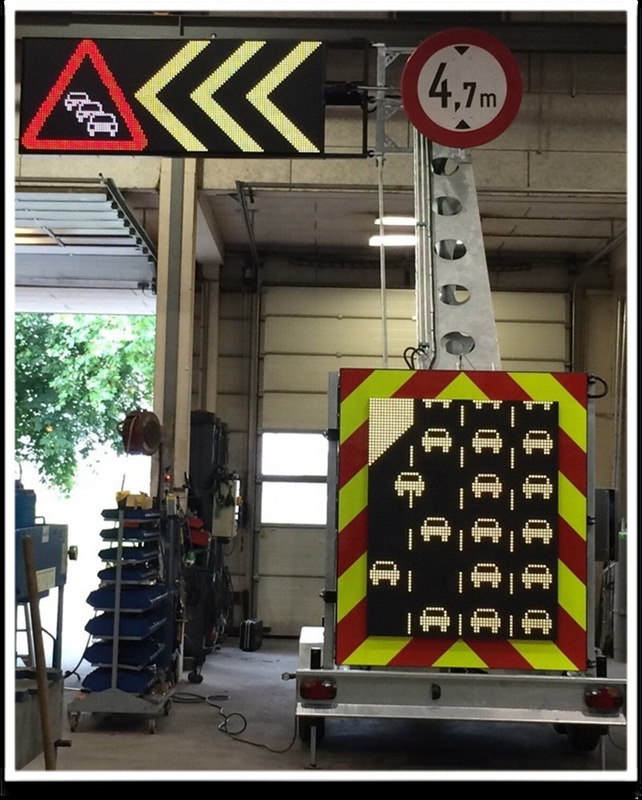

Application scenario
