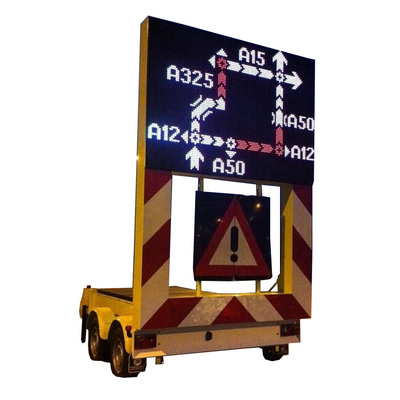

IP56 P10 Trailer LED Display Mobile Billboard For Traffic Road Safety
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Certification: | 2AZPZ-T25 |
| Model Number: | YHT-VMS-OT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD1500-2000/set |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 30days |
| Payment Terms: | Western Union, T/T, L/C, D/P, D/A, MoneyGram |
| Supply Ability: | 1000set/per month |
|
Detail Information |
|||
| Brightness Adjustment: | 32/256 | Display Capacity: | Text,image,graphics Animations |
|---|---|---|---|
| Operation Temperature: | -25~+60℃ | Storage Temperature: | -40~+80℃ |
| Protection Level: | IP56(P3:12966) | Feature: | Control System |
| High Light: | P10 Trailer LED Display,IP56 Trailer LED Display,P10 LED Mobile Billboard |
||
Product Description
IP56 P10 Trailer LED Display Mobile Billboard For Traffic Road Safety
P10 LED Mobile Billboard Screen Trailer For Outdoor Advertising Activities Events And Traffic Road Safety
Product Description
EN12966 OUTDOOR TRAFFIC LED TRAILER
Yaham Mobile led Digital Billboard with 3-resisting lacquer: protect circuit boards and related equipment from the erosion of the environment; has good resistance to high temperature; after cured into a transparent protective film, with excellent insulation, moisture-proof, leak-proof, shock-proof dust, corrosion, aging resistance, corona and other properties. Waterproof Glue: with automatic irrigation machines, to ensure the uniform, smooth.
Specification
| ITEM | OT16 | OT20 | OT25 | OT31.25 |
| PIXEL | 16mm | 20 mm | 25 mm | 31.25mm |
| LED TYPE | 3 in 1SMD+LENS | 3 in 1SMD+LENS | 3 in 1SMD+LENS | 3 in 1SMD+LENS |
| PIXEL DENSITY | 3906 pixel/m2 | 2500 pixel/m2 | 1600 pixel/m2 | 1024 pixel/m2 |
| MODULE DIMENSION | 256X128 mm | 320X160 mm | 200 x 200 mm | 250 x 250 mm |
| MODULE RESOLUTION | 16*8 pixels | 16*8 pixels | 8*8 pixels | 8*8 pixels |
| CABINET DIMENSION | 1024*1024mm | 960*960mm | 1000*1000mm | 1000*1000mm |
| CABINET WEIGHT | 65kg | 65kg | 65kg | 65kg |
| ACCESS | FRONT /BACK | FRONT /BACK | FRONT /BACK | FRONT /BACK |
| INGRESS PROTECTION | IP65 | IP65 | IP65 | IP65 |
| BRIGHTNESS | 12400 NITS | 12400 NITS | 12400 NITS | 12400 NITS |
| VIEWING ANGLE | H15/-15 V8/-10 | H15/-15 V8/-10 | H15/-15 V8/-10 | H15/-15 V8/-10 |
| MAX.POWER CONSUMPTION | 250W | 220W | 220W | 220W |
| AVE.POWER CONSUMPTION | 80W | 70W | 70W | 70W |
| DRIVIG METHOD | STATIC | STATIC | STATIC | STATIC |
| DISPLAY CONTROL | Asynchronous control | Asynchronous control | Asynchronous control | Asynchronous control |
| LED LIFESPAN | 100,000 | 100,000 | 100,000 | 100,000 |
Product Advantages
- New Integrated Optical Len
- Improved flatness
- High color consistency
- Better contrast ratio
- Effortless replace
- Thinner cabinet
- High stability
- Global positioning system
- Self-diagnosis and failure report
- High protection
- Customized color and sizes
Wireless and remote control
Application scenario
Want to Know more details about this product
