Gantry NTCIP OT10 Motorway VMS Signs Board LED Traffic Warning Message
Product Details:
| Place of Origin: | shenzhen，china |
| Brand Name: | YAHAM |
| Certification: | EN12966、NTCIP |
| Model Number: | YHT-OT10-1R1G1B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 Square Meter/Square Meters |
|---|---|
| Price: | $1200-2000 Square Meter/Square Meters |
| Packaging Details: | POLY WOODEN CASE |
| Delivery Time: | 38 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5500 Square Meter/Square Meters Per Month |
|
Detail Information |
|||
| Pixel Pitch: | 10mm | Screen Weight: | 65kg/m² |
|---|---|---|---|
| Customized Size: | 3-5 Years | Lifespan: | >100000 Hrs |
| Signal Transfer: | Cat 5 Network Cable, RS232,RS485 Optional | Protection Level: | IP56(P3:12966) |
| Display Capacity: | Text, Image, Graphics Animations | Display Control: | Asynchronous Control System Available |
| High Light: | OT10 Motorway VMS Signs,Gantry Motorway VMS Signs,OT10 VMS Sign Board |
||
Product Description
Gantry NTCIP OT10 Motorway VMS Signs Board LED Traffic Warning Message
Gantry VMS sign board EN12966 LED traffic warning message signs NTCIP OT10

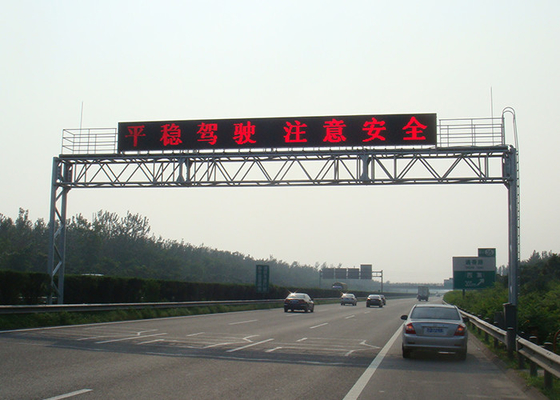

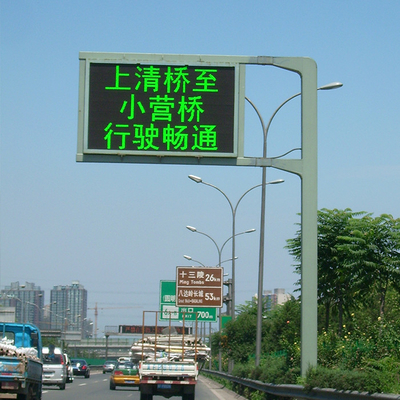

The Yaham VMS products including gantry VMS, cantilever VMS, single pillar VMS and other customized VMS products. By delivering useful information, our durable signs are guiding traffic all over the world.
Yaham variable message sign, often used on motorway, are designed to deliver traffic information covering congestion report,accident report, temperature, lane control and limit speed sign, etc. It has been widely used in modern transportation system and it is becoming indispensable.
The modular design covers the different needs of various road sections such as 2-lane, 3-lane, and 4-lane. The brightness is optional from 8500 to 15000nits, and it can display the red, green and yellow Chinese characters and icons specified by the national standard. Strictly follow the GBT 23828-2009 standard for material selection, design, production and testing Product description: Environmental protection ⊙ Dual power supply channels built into the screen with ultra-low voltage driver ICs to maximize energy-saving effects.
Provide high brightness, standard brightness and high density 3 kinds of modules, in line with various application requirements of LED variable intelligence board.
The brightness is optional from 8500 to 15000nits, and it can display the red, green and yellow Chinese characters and icons specified by the national standard.
The modular design meets the different needs of various sections of highway entrances, exits and overpasses.
|
Item |
YHT-VMS-OT10 |
YHT-VMS-OT12 |
YHT-VMS-OT16 |
YHT-VMS-OT20 |
YHT-VMS-OT25 |
|
Pixel pitch |
10mm |
12mm |
16mm |
20mm |
25mm |
|
LED type |
3 in1 SMD+lens |
3 in1 SMD+lens |
3 in1 SMD+lens |
3 in1 SMD+lens |
3 in1 SMD+lens |
|
Pixel density |
10000 pixels/m² |
6944 pixels/m² |
3906 pixels/m² |
2500 pixels/m² |
1600 pixels/m² |
|
Module dimension |
320×160 mm |
192×192 mm |
256×128 mm |
320×160 mm |
200×200 mm |
|
Module resolution |
32×16 |
16×16 |
16×8 |
16×8 |
8×8 |
|
Cabinet material |
2mm aluminum Alloy |
||||
|
Screen weight |
65kg/m² |
||||
|
Cabinet dimension |
960×960 mm |
960×960 mm |
1024×1024 mm |
960×960 mm |
1000×1000 mm |
|
Brightness |
L3,L3*:EN12966 (Red: >3100nits, Green>3720nits, Blue>1240nits, Amber>7440nits, White:>12400nits) |
||||
|
Brightness adjustment |
32/256 |
||||
|
Color coordinates |
C2: EN12966 |
C2: EN12966 |
C2: EN12966 |
C2: EN12966 |
C2: EN12966 |
|
Refresh rate |
>90+ Hz |
>90+ Hz |
>90+ Hz |
>90+ Hz |
>90+ Hz |
|
Display control |
Asynchronous control system available |
||||
|
Display capacity |
Text, image, graphics animations |
||||
|
Lifespan |
>100000 hrs |
>100000 hrs |
>100000 hrs |
>100000 hrs |
>100000 hrs |
|
Power supply |
12-24V DC/110-230V AC |
||||
|
Avg. Power consumption |
130W/m² |
120W/m² |
80W/m² |
70W/m² |
70W/m² |
|
Operation temperature |
-25~ +60°C |
||||
|
Storage temperature |
-40~ +80°C |
||||
|
Store humidity |
15%~ 95% |
15%~ 95% |
15%~ 95% |
15%~ 95% |
15%~ 95% |
|
Protection level |
IP56(P3:12966) |
IP56(P3:12966) |
IP56(P3:12966) |
IP56(P3:12966) |
IP56(P3:12966) |
