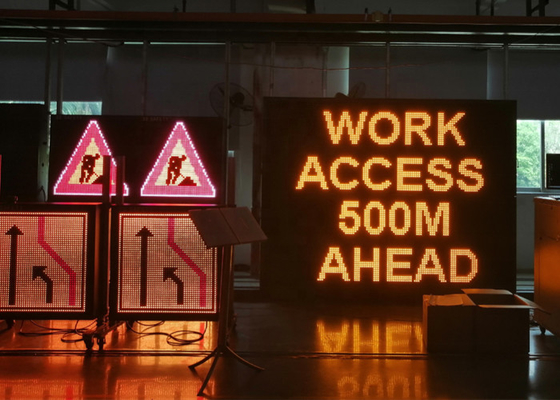

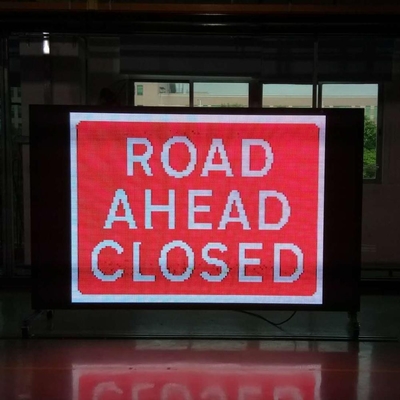

LED RGB EN12966 NTCIP Highway Electronic Signs VMS Warning Board
Product Details:
| Place of Origin: | shenzhen，china |
| Brand Name: | YAHAM |
| Certification: | EN12966、NTCIP |
| Model Number: | YHT-OT20-1R1G1B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 19 Square Meter/Square Meters |
|---|---|
| Price: | $1200-2000 Square Meter/Square Meters |
| Packaging Details: | POLY WOODEN CASE |
| Delivery Time: | 39 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3900 Square Meter/Square Meters Per Month |
|
Detail Information |
|||
| Pixel Pitch: | 20mm | Screen Weight: | 65kg/m² |
|---|---|---|---|
| Refresh Rate: | >90+ Hz | Signal Transfer: | Cat 5 Network Cable, RS232,RS485 Optional |
| Storage Temperature: | -40~ +80°C | Power Supply: | 12-24V DC/110-230V AC |
| Operation Temperature: | -25~ 60°C | ||
| High Light: | NTCIP Highway Electronic Signs,EN12966 LED Traffic Message Board,EN12966 Highway Electronic Signs |
||
Product Description
LED RGB EN12966 NTCIP Highway Electronic Signs VMS Warning Board
Led vms highway warning board highway electronic signs 2500 pixels/m² RGB NTCIP
Improved flatness
Instead of manually implanting optical len one by one, new module comes all the lens are moduled in one piece, resulting in perfect module flatness
Thinner cabinet
New OT16 and OT20 modules measure only 40mm and 35mm thick respectively, 50% thinner than the previous generations, facilitating installation.
High stability
Less manual production and component processes, less potential failure rate, bringing the new module up to a new level of stability.
Customized color
Yaham VMS is a highly customized product with color availability including monochrome,full-color and dual-color.
Remote control
Messages, photos are capable of being edited and displayed remotely and wirelessly. In addition, VMS can also be remotely switched on and off.
smart
⊙ The overall design of the structure with a downward slope of 4° ensures that the light normal is 250 meters away.
⊙ A single point fault feedback system is built into the screen to ensure that the working status of the induction screen can be grasped at the first time in the control room.
⊙ An environmental monitoring feedback system is built into the screen to ensure the safe operation and use of the induction screen.
⊙ The built-in brightness of the screen automatically adjusts to ensure sufficient brightness during the day and no glare at night.
| Item | YHT-VMS-OT10 | YHT-VMS-OT12 | YHT-VMS-OT16 | YHT-VMS-OT20 | YHT-VMS-OT25 | YHT-VMS-OT31.25 |
| Pixel pitch | 10mm | 12mm | 16mm | 20mm | 25mm | 31.25mm |
| LED type | 3 in1 SMD+lens | 3 in1 SMD+lens | 3 in1 SMD+lens | 3 in1 SMD+lens | 3 in1 SMD+lens | 3 in1 SMD+lens |
| Pixel density | 10000 pixels/m² | 6944 pixels/m² | 3906 pixels/m² | 2500 pixels/m² | 1600 pixels/m² | 1024 pixels/m² |
| Module dimension | 320×160 mm | 192×192 mm | 256×128 mm | 320×160 mm | 200×200 mm | 250×250 mm |
| Module resolution | 32×16 | 16×16 | 16×8 | 16×8 | 8×8 | 8×8 |
| Cabinet material | 2mm aluminum Alloy | |||||
| Screen weight | 65kg/m² | |||||
| Cabinet dimension | 960×960 mm | 960×960 mm | 1024×1024 mm | 960×960 mm | 1000×1000 mm | 1000×1000 mm |
| Brightness | L3,L3*:EN12966 (Red: >3100nits, Green>3720nits, Blue>1240nits, Amber>7440nits, White:>12400nits) | |||||
| Refresh rate | >90+ Hz | >90+ Hz | >90+ Hz | >90+ Hz | >90+ Hz | >90+ Hz |
| Display control | Asynchronous control system available | |||||
| Display capacity | Text, image, graphics animations | |||||
| Lifespan | >100000 hrs | >100000 hrs | >100000 hrs | >100000 hrs | >100000 hrs | >100000 hrs |
| Power supply | 12-24V DC/110-230V AC | |||||
| Max. Power consumption | 400W/m² | 380W/m² | 250W/m² | 220W/m² | 220W/m² | 220W/m² |
| Avg. Power consumption | 130W/m² | 120W/m² | 80W/m² | 70W/m² | 70W/m² | 70W/m² |
| Operation temperature | -25~ +60°C | |||||
| Storage temperature | -40~ +80°C | |||||
| Store humidity | 15%~ 95% | 15%~ 95% | 15%~ 95% | 15%~ 95% | 15%~ 95% | 15%~ 95% |
| Protection level | IP56(P3:12966) | IP56(P3:12966) | IP56(P3:12966) | IP56(P3:12966) | IP56(P3:12966) | IP56(P3:12966) |
