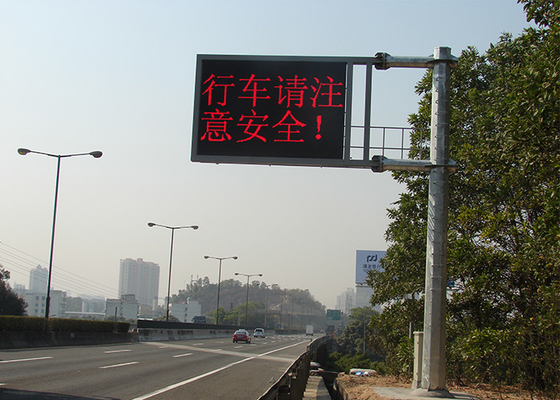

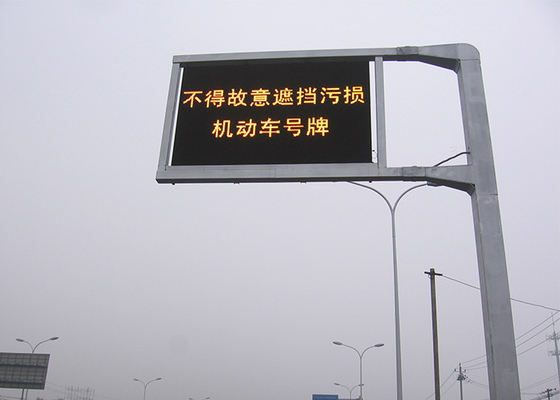

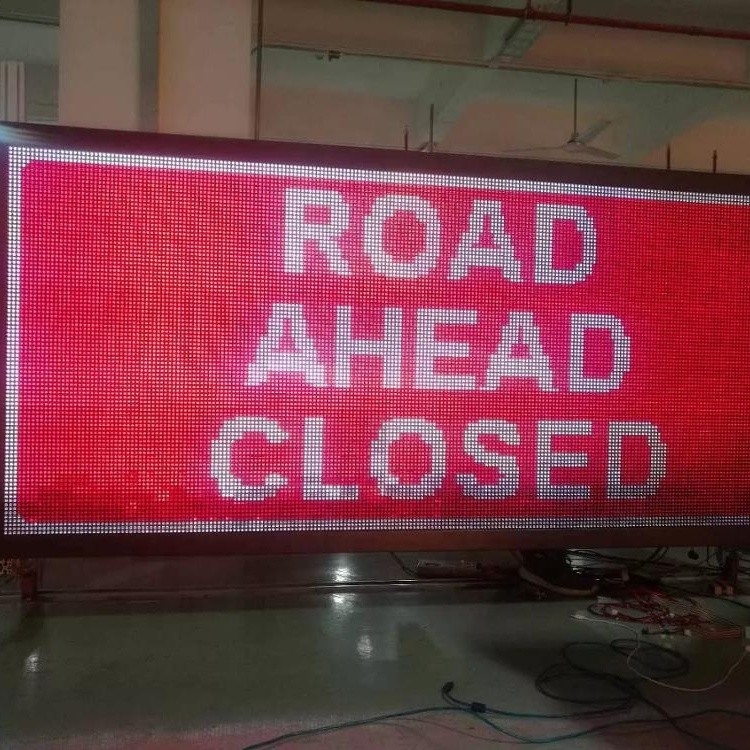

DIP P10 Motorway VMS Signs Long Lifespan Safety Message Board
Product Details:
| Place of Origin: | shenzhen，china |
| Brand Name: | YAHAM |
| Certification: | EN12966、NTCIP |
| Model Number: | YHT-DIP10-1R1G1B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 15 Square Meter/Square Meters |
|---|---|
| Price: | $1200-2000 Square Meter/Square Meters |
| Packaging Details: | POLY WOODEN CASE |
| Delivery Time: | 38 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 4500 Square Meter/Square Meters Per Month |
|
Detail Information |
|||
| Pixel Pitch: | 10mm | Screen Weight: | 65kg/m² |
|---|---|---|---|
| Customized Size: | 3-5 Years | Lifespan: | >100000 Hrs |
| Pixel Density: | 10000 Pixels/m² | Viewing Angle: | H.110°, V.50° |
| Power Supply: | 12-24v /220v | Store Humidity: | 15%~ 95% |
| High Light: | P10 Motorway VMS Signs,DIP Motorway VMS Signs,P10 VMS Digital Message Board |
||
Product Description
DIP P10 Motorway VMS Signs Long Lifespan Safety Message Board
Variable message sign DIP digital traffic board motoway safety message P10 EN12966
product introduction:
Provide high brightness, standard brightness and high density 3 kinds of modules, in line with various application requirements of LED variable intelligence board.
The modular design covers the different needs of various road sections such as 2-lane, 3-lane, and 4-lane.
The brightness is optional from 8500 to 15000nits, and it can display the red, green and yellow Chinese characters and icons specified by the national standard.
product description:
Environmental friendly
⊙The built-in dual power supply channels in the screen cooperate with ultra-low voltage driver IC to maximize the energy saving effect.
⊙All products are selected, designed and produced according to RoHS standards.
⊙The production strictly follows the ISO14001 standard.
⊙The screen is built with power distribution system, integrated power supply lightning protection, signal lightning protection.
smart
⊙The built-in brightness of the screen automatically adjusts to ensure sufficient brightness during the day and no glare at night.
⊙The overall design of the structure with a downward slope of 4° ensures that the light normal is 250 meters away.
⊙A single point fault feedback system is built into the screen to ensure that the working status of the induction screen can be grasped at the first time in the control room.
| Item | YHT-VMS-D10 |
| Pixel pitch | 10mm |
| LED type | 346 DIP |
| Pixel density | 10000 pixels/m² |
| Module dimension | 160×160 mm |
| Module resolution | 16×16 |
| Cabinet material | 2mm aluminum Alloy |
| Screen weight | 65kg/m² |
| Cabinet dimension | 960×960 mm |
| Brightness | L3: EN12966 (Red: >3100nits, Green>3720nits,Blue>1240nits, Amber>7440nits, |
| Brightness adjustment | 32/256 |
| Color coordinates | / |
| Refresh rate | >90+ Hz |
| Display control | Asynchronous control system available |
| Display capacity | Text, image, graphics animations |
| Lifespan | >100000 hrs |
| Power supply | 12-24v /220v |
| Max. Power consumption | 300W/m² |
| Avg. Power consumption | 100W/m² |
| Operation temperature | -25~ +60°C |
| Storage temperature | -40~ +80°C |
| Store humidity | 15%~ 95% |
| Protection level | IP56(P3:12966) |
1. who are we?
We are based in Guangdong, China, start from 2002,sell to Domestic Market(41.00%),North America(30.00%),Southeast Asia(6.00%),Oceania(6.00%),Eastern Asia(4.00%),Northern Europe(3.00%),Southern Europe(3.00%),Eastern Europe(2.00%),Mid East(2.00%),Western Europe(2.00%),South Asia(00.00%). There are total about 501-1000 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Taxi Roof LED Display,VMS Trailer,Variable Message Sign,Rental LED Display,Speed Limit Sign
