Custom P25 LED Traffic Variable Message Sign for Highway City Road
Product Details:
| Place of Origin: | shenzhen，china |
| Brand Name: | YAHAM |
| Certification: | EN12966、NTCIP |
| Model Number: | YHT-OT25-1R1G1B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 13 Square Meter/Square Meters |
|---|---|
| Price: | $1200-2000 Square Meter/Square Meters |
| Packaging Details: | POLY WOODEN CASE |
| Delivery Time: | 37 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3600 Square Meter/Square Meters Per Month |
|
Detail Information |
|||
| Pixel Pitch: | 25mm | Screen Weight: | 65kg/m² |
|---|---|---|---|
| Logo: | Customized Logo | Size: | Customized Size |
| Lifespan: | >100000 Hrs | Module Dimension: | 8×8 |
| Brightness: | L3,L3*:EN12966 (Red: >3100nits, Green>3720nits, Blue>1240nits, Amber>7440nits, White:>12400nits) | Driving Method: | Static |
| High Light: | P25 Traffic Variable Message Sign,VMS LED Message Display,P25 VMS Road Signs |
||
Product Description
Custom P25 LED Traffic Variable Message Sign For Highway City Road
Traffic variable message sign for highway and city road led message display with en12966

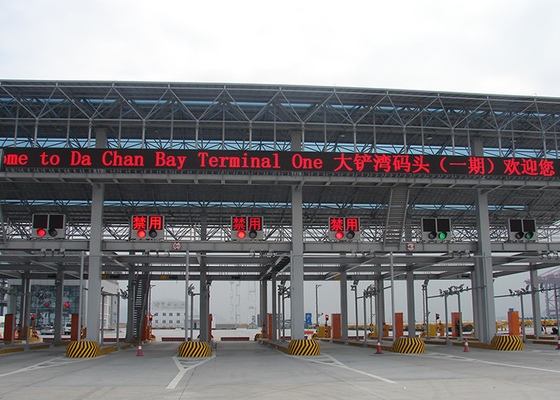

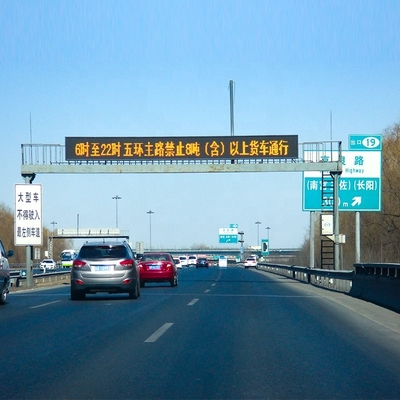

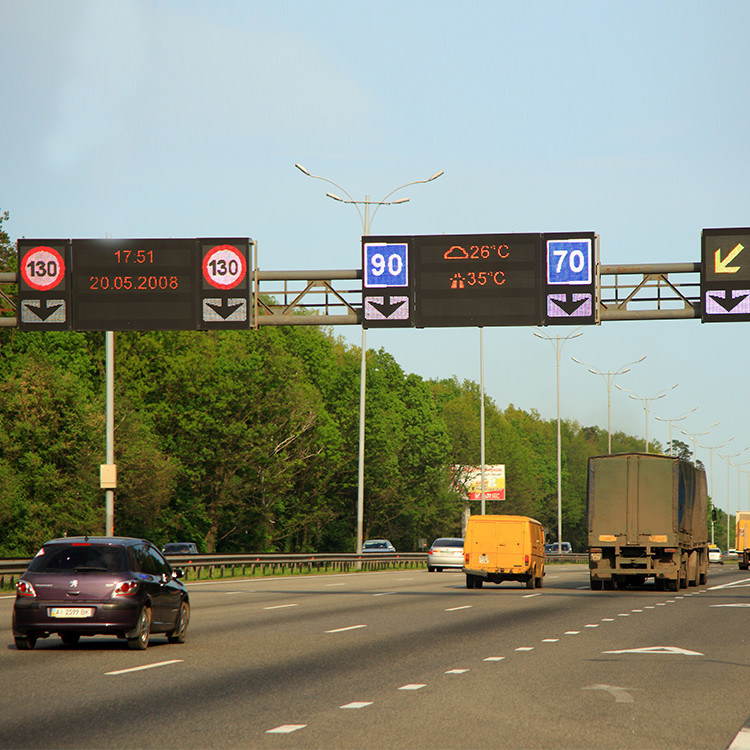

Yaham variable message sign, often used on motorway, are designed to deliver traffic information covering congestion report,accident report, temperature, lane control and limit speed sign, etc. It has been widely used in modern transportation system and it is becoming indispensable.
The Yaham VMS products including gantry VMS, cantilever VMS, single pillar VMS and other customized VMS products. By delivering useful information, our durable signs are guiding traffic all over the world.
High color consistency
With a much improved flatness, diode spectrum and brightness are able to remain the same, making the color more consistent and content more readable
Effortless service
Thanks to the integrated optical len design, no glue coating on the PCB is required, making diode or driver replacement much easier than before.
High stability
Less manual production and component processes, less potential failure rate, bringing the new module up to a new level of stability.
IP65 pressure washing and harsh weather Electomagnetic interference free.
Wireless and remote control.
Available in variety of sizes and cabinet colors Networkable with other displays and controllers.
Self-diagnosis and failure report.
Monitor can identify equipment status, current message ID, diagnostic information, current operating mode.
Saving power by exceptional lens design, dual-voltage, driver IC, digital dimming.
|
Item |
YHT-VMS-OT10 |
YHT-VMS-OT16 |
YHT-VMS-OT20 |
YHT-VMS-OT25 |
YHT-VMS-OT31.25 |
|
Pixel pitch |
10mm |
16mm |
20mm |
25mm |
31.25mm |
|
LED type |
3 in1 SMD+lens |
3 in1 SMD+lens |
3 in1 SMD+lens |
3 in1 SMD+lens |
3 in1 SMD+lens |
|
Pixel density |
10000 pixels/m² |
3906 pixels/m² |
2500 pixels/m² |
1600 pixels/m² |
1024 pixels/m² |
|
Module dimension |
320×160 mm |
256×128 mm |
320×160 mm |
200×200 mm |
250×250 mm |
|
Cabinet material |
2mm aluminum Alloy |
||||
|
Cabinet dimension |
960×960 mm |
1024×1024 mm |
960×960 mm |
1000×1000 mm |
1000×1000 mm |
|
Brightness |
L3,L3*:EN12966 (Red: >3100nits, Green>3720nits, Blue>1240nits, Amber>7440nits, White:>12400nits) |
||||
|
Brightness adjustment |
32/256 |
||||
|
Color coordinates |
C2: EN12966 |
C2: EN12966 |
C2: EN12966 |
C2: EN12966 |
C2: EN12966 |
|
Viewing angle |
H 15/-15 Deg. / V 8/-10 Deg.(B6:EN12966) |
||||
|
Refresh rate |
>90+ Hz |
>90+ Hz |
>90+ Hz |
>90+ Hz |
>90+ Hz |
|
Display control |
Asynchronous control system available |
||||
|
Display capacity |
Text, image, graphics animations |
||||
|
Lifespan |
>100000 hrs |
>100000 hrs |
>100000 hrs |
>100000 hrs |
>100000 hrs |
|
Power supply |
12-24V DC/110-230V AC |
||||
|
Avg. Power consumption |
130W/m² |
80W/m² |
70W/m² |
70W/m² |
70W/m² |
|
Operation temperature |
-25~ +60°C |
||||
|
Storage temperature |
-40~ +80°C |
||||
|
Store humidity |
15%~ 95% |
15%~ 95% |
15%~ 95% |
15%~ 95% |
15%~ 95% |
|
Protection level |
IP56(P3:12966) |
IP56(P3:12966) |
IP56(P3:12966) |
IP56(P3:12966) |
IP56(P3:12966) |
|
Maintenance method |
Rear service |
||||
