Asynchronous Motorway VMS Signs EN12966 LED Traffic Warning Boards
Product Details:
| Place of Origin: | shenzhen，china |
| Brand Name: | YAHAM |
| Certification: | EN12966、NTCIP |
| Model Number: | YHT-OT12-1R1G1B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 11 Square Meter/Square Meters |
|---|---|
| Price: | $1200-2000 Square Meter/Square Meters |
| Packaging Details: | POLY WOODEN CASE |
| Delivery Time: | 39 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3800 Square Meter/Square Meters Per Month |
|
Detail Information |
|||
| Pixel Pitch: | 12mm | Screen Weight: | 65kg/m² |
|---|---|---|---|
| Control System: | Asynchronous | Lifespan: | >100000 Hrs |
| Max. Power Consumption: | 380W/m² | Store Humidity: | 15%~ 95% |
| Storage Temperature: | -40~ +80°C | Viewing Angle: | H 15/-15 Deg. / V 8/-10 Deg.(B6:EN12966) |
| High Light: | Asynchronous Motorway VMS Signs,EN12966 Motorway VMS Signs,EN12966 LED VMS Board |
||
Product Description
Asynchronous Motorway VMS Signs EN12966 LED Traffic Warning Boards
Motorway variable message sign led traffic warning boards EN12966 p12 6944 pixels/m²
Global positioning system
Each VMS is paired with GPS, locations and VMS amount could be simply apparent to your eye.
Smart monitor
Yaham VMS can activate self-diagnosis and report health status, monitor can identify equipment health status, current message ID, current operating mode temperature, humidity, etc.
Improved flatness
Instead of manually implanting optical len one by one, new module comes all the lens are moduled in one piece, resulting in perfect module flatness
High stability
Less manual production and component processes, less potential failure rate, bringing the new module up to a new level of stability.
product introduction:
Provide high brightness, standard brightness and high density 3 kinds of modules, in line with various application requirements of LED variable intelligence board.

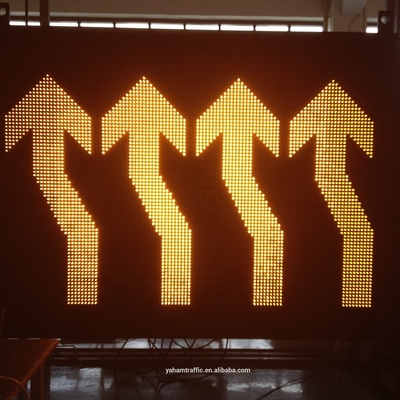

The modular design covers the different needs of various road sections such as 2-lane, 3-lane, and 4-lane.

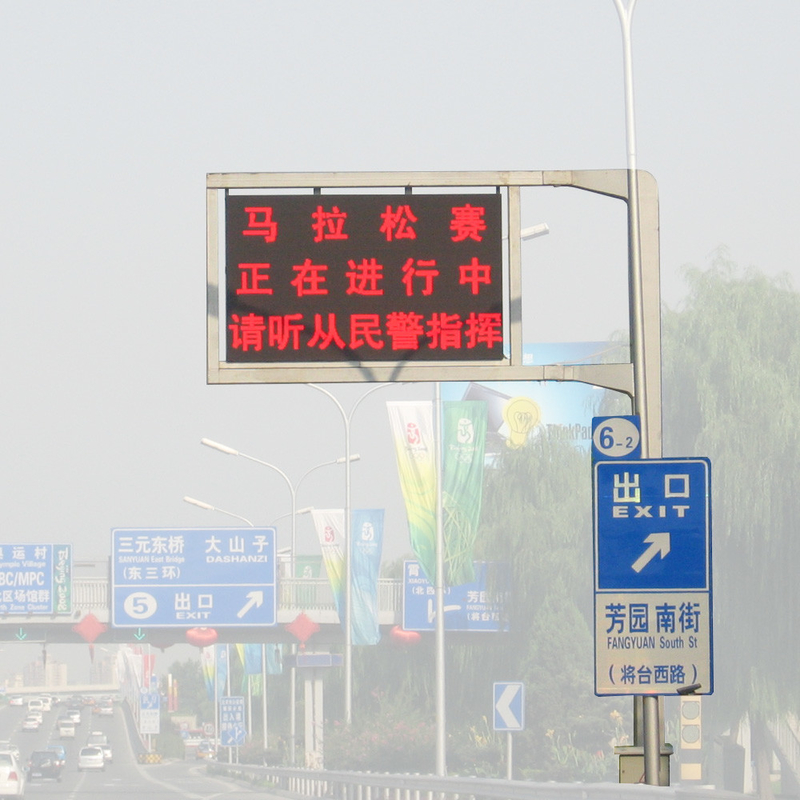

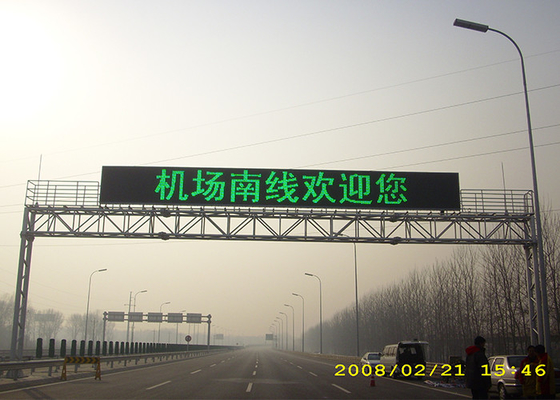

The brightness is optional from 8500 to 15000nits, and it can display the red, green and yellow Chinese characters and icons
specified by the national standard.
Strictly follow GBT 23828-2009 standard for material selection, design, production and testing
The modular design covers the different needs of various road sections such as 2-lane, 3-lane, and 4-lane. The brightness is
optional from 8500 to 15000nits, and it can display the red, green and yellow Chinese characters and icons specified by the
national standard. Strictly follow the GBT 23828-2009 standard for material selection, design, production and testing
Product description: Environmental protection
⊙ Dual power supply channels built into the screen with ultra-low voltage driver ICs to
maximize energy-saving effects.
| Item | YHT-VMS-OT12 |
| Pixel pitch | 12mm |
| LED type | 3 in1 SMD+lens |
| Pixel density | 6944 pixels/m² |
| Module dimension | 192×192 mm |
| Module resolution | 16×16 |
| Cabinet material | 2mm aluminum Alloy |
| Screen weight | 65kg/m² |
| Cabinet dimension | 960×960 mm |
| Brightness | L3,L3*:EN12966 (Red: >3100nits, Green>3720nits, Blue>1240nits, Amber>7440nits, White:>12400nits) |
| Brightness adjustment | 32/256 |
| Color coordinates | C2: EN12966 |
| Viewing angle | H 15/-15 Deg. / V 8/-10 Deg.(B6:EN12966) |
| Refresh rate | >90+ Hz |
| Display control | Asynchronous control system available |
| Display capacity | Text, image, graphics animations |
| Lifespan | >100000 hrs |
| Power supply | 12-24V DC/110-230V AC |
| Max. Power consumption | 380W/m² |
| Avg. Power consumption | 120W/m² |
| Operation temperature | -25~ +60°C |
| Storage temperature | -40~ +80°C |
| Store humidity | 15%~ 95% |
| Protection level | IP56(P3:12966) |
| Maintenance method | Rear service |
1. who are we?
We are based in Guangdong, China, start from 2002,sell to Domestic Market(41.00%),North America(30.00%),Southeast Asia(6.00%),Oceania(6.00%),Eastern Asia(4.00%),Northern Europe(3.00%),Southern Europe(3.00%),Eastern Europe(2.00%),Mid East(2.00%),Western Europe(2.00%),South Asia(00.00%). There are total about 501-1000 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
