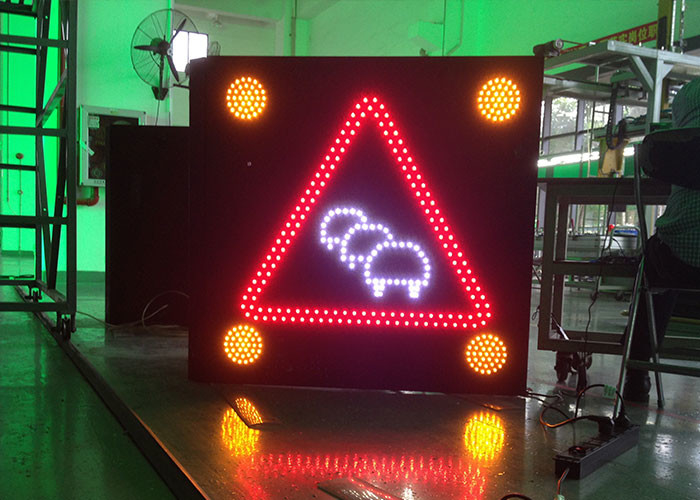

Lighted P20 Solar Street Sign 2mm aluminum Alloy 960×960mm Cabinet
Product Details:
| Place of Origin: | shenzhen，china |
| Brand Name: | YAHAM |
| Certification: | EN12966、NTCIP |
| Model Number: | YHT-VMS-D20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 18 Square Meter/Square Meters |
|---|---|
| Price: | $1200-2000 Square Meter/Square Meters |
| Packaging Details: | POLY WOODEN CASE |
| Delivery Time: | 31-40 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3600 Square Meter/Square Meters Per Month |
|
Detail Information |
|||
| Pixel Pitch: | 20mm | Pixel Density: | 2500 Pixels/m² |
|---|---|---|---|
| Module Dimension: | 320×160 Mm | Cabinet Material: | 2mm Aluminum Alloy |
| Cabinet Dimension: | 960×960mm | Lifespan: | >100000 Hrs |
| Store Humidity: | 15%~ 95% | Power Supply: | 12-24v /220v |
| High Light: | P20 Solar Street Sign,960×960mm Cabinet Solar Street Sign,P20 Lighted Traffic Signs |
||
Product Description
Lighted P20 Solar Street Sign 2mm Aluminum Alloy 960×960mm Cabinet
Safety solar road warning led traffic sign 65kg/m² Operation temperature -25~ 60°C
Short Delivery Term
YAHAM manufactures all orders according to customer expectations. YAHAM realizes the importance of short delivery terms for customers because of that YAHAM aims to manufacture all his orders within promised dates.
High Quality Production
YAHAM use all its raw metarials from ISO certificated products. YAHAM quality staff check all raw metarials before&after all processes to meet quality requirements.
Competitive Price
YAHAM believes to give competitive prices, it should push its own suppliers for competitive prices. YAHAM audit, bargain with its suppliers on behalf of you to reflect decreased prices.
Product Description
low power led display screen, above 50% energy-saving than traditional, but still keep high brightness up to 7500nits,and competitive price
1.Lower power consumption,only need 3.8V and 7.65W for single module,the average power consumption is only 100W/sq.m and 350W/sq.m for max power consumption for screen,that is to say, a panel of 960x960mm only need two power supply
2.DIP led encapsulation confirm high brightness and good heat dissipation,meet to any weather
3.Good waterproof IP65 anti-corrosion,antifogging,long life span>100000Hours
4.Made with high quality Epistar leds keep high quality, low lighting decay, energy saving
5. Brightness can be adjusted automatically according to different surrondings,can be set to open and close the screen on fixed automatically
| Item | YHT-VMS-D12 | YHT-VMS-D16 | YHT-VMS-D20 | YHT-VMS-D25 | YHT-VMS-D31.25 |
| Pixel pitch | 12mm | 16mm | 20mm | 25mm | 31.25mm |
| LED type | 346 DIP | 510 DIP | 510 DIP | 510 DIP | 510 DIP |
| Pixel density | 3944 pixels/m² | 3906 pixels/m² | 2500 pixels/m² | 1600 pixels/m² | 1024 pixels/m² |

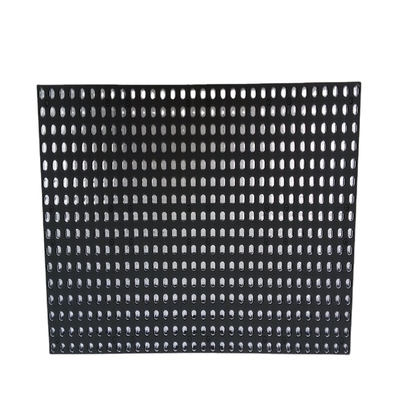

| Module dimension | 192×192 mm | 256×256 mm | 320×160 mm | 200×200 mm | 250×125 mm |
| Module resolution | 16×16 | 16×16 | 16×8 | 8×8 | 8×4 |
| Cabinet material | 2mm aluminum Alloy | ||||
| Screen weight | 65kg/m² | 65kg/m² | 65kg/m² | 65kg/m² | 65kg/m² |
| Cabinet dimension | 960×960 mm | 1024×1024 mm | 960×960 mm | 1000×1000 mm | 1000×1000 mm |
| Brightness | L3: EN12966 (Red: >3100nits, Green>3720nits,Blue>1240nits, Amber>7440nits, | ||||
| Driving method | 2S | Static | Static | Static | Static |
| Brightness adjustment | 32/256 | 32/256 | 32/256 | 32/256 | 32/256 |
| Color coordinates | / | C2: EN12966 | C2: EN12966 | C2: EN12966 | C2: EN12966 |
| Viewing angle | H.110°, V.50° | H.30°, V.30°(B6:EN12966) | |||
| Refresh rate | >90+ Hz | >90+ Hz | >90+ Hz | >90+ Hz | >90+ Hz |
| Display control | Asynchronous control system available | ||||
| Signal transfer | Cat 5 Network Cable, RS232,RS485 optional | ||||
| Display capacity | Text, image, graphics animations | ||||
| Lifespan | >100000 hrs | >100000 hrs | >100000 hrs | >100000 hrs | >100000 hrs |
| Power supply | 12-24v /220v | 12-24v /220v | 12-24v /220v | 12-24v /220v | 12-24v /220v |
| Max. Power consumption | 300W/m² | 200W/m² | 200W/m² | 200W/m² | 200W/m² |
| Avg. Power consumption | 100W/m² | 70W/m² | 70W/m² | 70W/m² | 70W/m² |
| Operation temperature | -25~ 60°C | ||||
| Storage temperature | -40~ 80°C | -40~ 80°C | -40~ 80°C | -40~ 80°C | -40~ 80°C |
| Operating humidity | 10%~ 90% | 10%~ 90% | 10%~ 90% | 10%~ 90% | 10%~ 90% |
| Protection level | IP56(P3:12966) | IP56(P3:12966) | IP56(P3:12966) | IP56(P3:12966) | IP56(P3:12966) |
