P20 960*960mm LED Traffic Warning Signs VMS Street Caution Guidance
Product Details:
| Place of Origin: | shenzhen，china |
| Brand Name: | YAHAM |
| Certification: | EN12966、NTCIP |
| Model Number: | YHT-VMS-D20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 19 Square Meter/Square Meters |
|---|---|
| Price: | $1200-2000 Square Meter/Square Meters |
| Packaging Details: | POLY WOODEN CASE |
| Delivery Time: | 31-41 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3700 Square Meter/Square Meters Per Month |
|
Detail Information |
|||
| Pixel Pitch: | 20mm | LED Type: | 510 DIP |
|---|---|---|---|
| Cabinet Material: | 2mm Aluminum Alloy | Refresh Rate: | >90+ Hz |
| Display Capacity: | Text, Image, Graphics Animations | Avg. Power Consumption: | 70W/m² |
| Store Humidity: | 15%~ 95% | Driving Method: | Static |
| High Light: | 960*960mm LED Traffic Warning Signs,P20 LED Traffic Warning Signs,VMS Street Caution Signs |
||
Product Description
P20 960*960mm LED Traffic Warning Signs VMS Street Caution Guidance
City road led message sign of traffic guidance vms p20 65kg/m² 960*960 mm
of importance:
1. Incident Management/Public Safety.
2. Special Events.
3. Environmental.
4. Congestion Management/Motorist Guidance.
5. Construction/Maintenance Activity.
6. Law Enforcement Message.
7. Public Service Campaign.

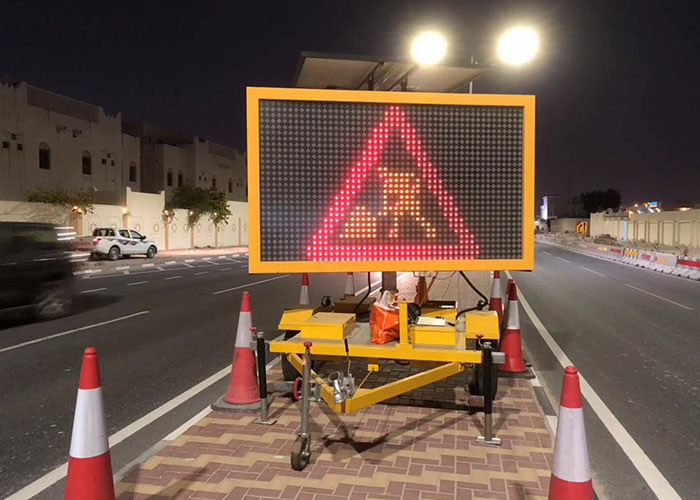

YAHAM variable message signs and traffic guidance equipment traffic information dissemination, which is based on LED lighting device shows the effect of the basic traffic information display unit of a display device with graphics and text. According to the instruction information traffic, weather and dispatching department, the operator can be released to the variable information boards of various notices and information to effectively induct traffic flow, improve transport capacity of the road network, the safety of the driver driving fast provide excellent service.
Competitive Price
YAHAM believes to give competitive prices, it should push its own suppliers for competitive prices. YAHAM audit, bargain with its suppliers on behalf of you to reflect decreased prices.
Product Description
low power led display screen, above 50% energy-saving than traditional, but still keep high brightness up to 7500nits,and competitive price
Made with high quality Epistar leds keep high quality, low lighting decay, energy saving
Brightness can be adjusted automatically according to different surrondings,can be set to open and close the screen on fixed automatically
| Item | YHT-VMS-D12 | YHT-VMS-D20 | YHT-VMS-D25 |
| Pixel pitch | 12mm | 20mm | 25mm |
| Pixel density | 3944 pixels/m² | 2500 pixels/m² | 1600 pixels/m² |
| Module dimension | 192×192 mm | 320×160 mm | 200×200 mm |
| Module resolution | 16×16 | 16×8 | 8×8 |
| Cabinet material | 2mm aluminum Alloy | ||
| Screen weight | 65kg/m² | 65kg/m² | 65kg/m² |
| Cabinet dimension | 960×960 mm | 960×960 mm | 1000×1000 mm |
| Brightness | L3: EN12966 (Red: >3100nits, Green>3720nits,Blue>1240nits, Amber>7440nits, | ||
| Driving method | 2S | Static | Static |
| Brightness adjustment | 32/256 | 32/256 | 32/256 |
| Color coordinates | / | C2: EN12966 | C2: EN12966 |
| Viewing angle | H.110°, V.50° | H.30°, V.30°(B6:EN12966) | |
| Contrast ratio | / | R3: EN12966 | R3: EN12966 |
| Display control | Asynchronous control system available | ||
| Signal transfer | Cat 5 Network Cable, RS232,RS485 optional | ||
| Display capacity | Text, image, graphics animations | ||
| Lifespan | >100000 hrs | >100000 hrs | >100000 hrs |
| Power supply | 12-24v /220v | 12-24v /220v | 12-24v /220v |
| Max. Power consumption | 300W/m² | 200W/m² | 200W/m² |
| Avg. Power consumption | 100W/m² | 70W/m² | 70W/m² |
| Operation temperature | -25~ 60°C | ||
| Storage temperature | -40~ 80°C | -40~ 80°C | -40~ 80°C |
| Operating humidity | 10%~ 90% | 10%~ 90% | 10%~ 90% |
| Store humidity | 15%~ 95% | 15%~ 95% | 15%~ 95% |
| Protection level | IP56(P3:12966) | IP56(P3:12966) | IP56(P3:12966) |
