Outdoor DIP P16 LED Traffic Signs 1024mm*1024mm Safety Signage
Product Details:
| Place of Origin: | shenzhen，china |
| Brand Name: | YAHAM |
| Certification: | EN12966、NTCIP |
| Model Number: | YHT-VMS-D16 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 13 Square Meter/Square Meters |
|---|---|
| Price: | $1200-2000 Square Meter/Square Meters |
| Packaging Details: | POLY WOODEN CASE |
| Delivery Time: | 32-40 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3530 Square Meter/Square Meters Per Month |
|
Detail Information |
|||
| Pixel Pitch: | 16mm | LED Type: | 510 DIP |
|---|---|---|---|
| Pixel Density: | 3906 Pixels/m² | Cabinet Material: | 2mm Aluminum Alloy |
| Module Resolution: | 16×16 | Display Control: | Asynchronous Control System Available |
| Signal Transfer: | Cat 5 Network Cable, RS232,RS485 Optional | Operating Humidity: | 10%~ 90% |
| High Light: | P16 LED Traffic Signs,1024mm*1024mm LED Traffic Signs,P16 Traffic Safety Signage |
||
Product Description

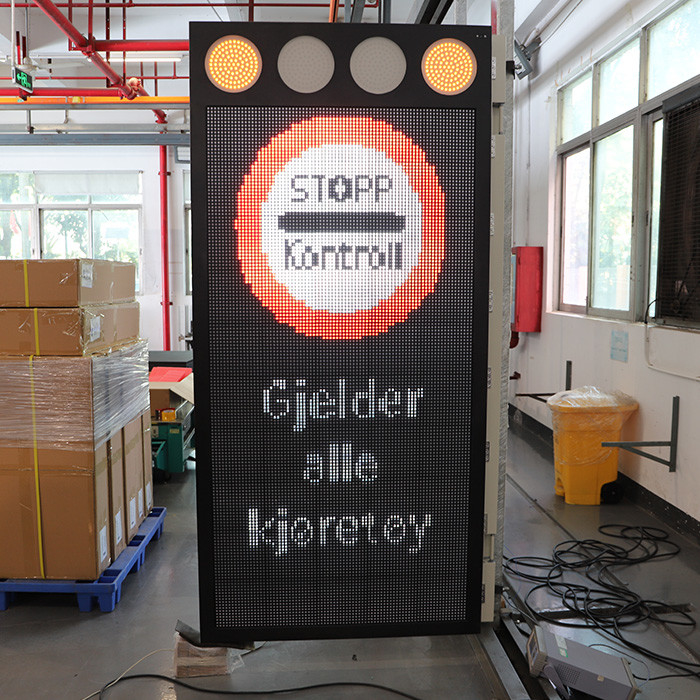

Outdoor DIP P16 LED Traffic Signs 1024mm*1024mm Safety Signage
p16 outdoor dip variable led display message sign for traffic system 1024mm *1024 mm
Strong cabinet architecture
2mm Aluminum housing, fully welded with internal strength, ensuring perfect screen performance in the harshest environments and
severe weather conditions.
Self –error detection
Every single LED is monitored by master card.Control center will receive warning from master card if there is LED off. User are
able to monitor display error remotely.
1. Brightness can be adjusted automatically according to different surrondings,can be set to open and close the screen on fixed
automatically
2.DIP led encapsulation confirm high brightness and good heat dissipation,meet to any weather
3.Good waterproof IP65 anti-corrosion,antifogging,long life span>100000Hours
4.Made with high quality Epistar leds keep high quality, low lighting decay, energy saving
High Quality Production
YAHAM use all its raw metarials from ISO certificated products. YAHAM quality staff check all raw metarials before&after all
processes to meet quality requirements.
Competitive Price
YAHAM believes to give competitive prices, it should push its own suppliers for competitive prices. YAHAM audit, bargain with
its suppliers on behalf of you to reflect decreased prices.
| Item | YHT-VMS-D12 | YHT-VMS-D16 | YHT-VMS-D20 | YHT-VMS-D25 |
| Pixel pitch | 12mm | 16mm | 20mm | 25mm |
| LED type | 346 DIP | 510 DIP | 510 DIP | 510 DIP |
| Pixel density | 3944 pixels/m² | 3906 pixels/m² | 2500 pixels/m² | 1600 pixels/m² |
| Module dimension | 192×192 mm | 256×256 mm | 320×160 mm | 200×200 mm |
| Module resolution | 16×16 | 16×16 | 16×8 | 8×8 |
| Screen weight | 65kg/m² | 65kg/m² | 65kg/m² | 65kg/m² |
| Cabinet dimension | 960×960 mm | 1024×1024 mm | 960×960 mm | 1000×1000 mm |
| Brightness | L3: EN12966 (Red: >3100nits, Green>3720nits,Blue>1240nits, Amber>7440nits, | |||
| Driving method | 2S | Static | Static | Static |
| Brightness adjustment | 32/256 | 32/256 | 32/256 | 32/256 |
| Color coordinates | / | C2: EN12966 | C2: EN12966 | C2: EN12966 |
| Viewing angle | H.110°, V.50° | H.30°, V.30°(B6:EN12966) | ||
| Contrast ratio | / | R3: EN12966 | R3: EN12966 | R3: EN12966 |
| Refresh rate | >90+ Hz | >90+ Hz | >90+ Hz | >90+ Hz |
| Display capacity | Text, image, graphics animations | |||
| Lifespan | >100000 hrs | >100000 hrs | >100000 hrs | >100000 hrs |
| Power supply | 12-24v /220v | 12-24v /220v | 12-24v /220v | 12-24v /220v |
| Max. Power consumption | 300W/m² | 200W/m² | 200W/m² | 200W/m² |
| Avg. Power consumption | 100W/m² | 70W/m² | 70W/m² | 70W/m² |
| Operation temperature | -25~ 60°C | |||
| Storage temperature | -40~ 80°C | -40~ 80°C | -40~ 80°C | -40~ 80°C |
| Store humidity | 15%~ 95% | 15%~ 95% | 15%~ 95% | 15%~ 95% |
| Protection level | IP56(P3:12966) | IP56(P3:12966) | IP56(P3:12966) | IP56(P3:12966) |
