Outdoor EN12966 NTCIP LED Road Sign Illuminated Green Color
Product Details:
| Place of Origin: | shenzhen，china |
| Brand Name: | YAHAM |
| Certification: | EN12966、NTCIP |
| Model Number: | YHT-VMS-D10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 Square Meter/Square Meters |
|---|---|
| Price: | $1200-2000 Square Meter/Square Meters |
| Packaging Details: | POLY WOODEN CASE |
| Delivery Time: | 30-42 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3900 Square Meter/Square Meters Per Month |
|
Detail Information |
|||
| Pixel Pitch: | 10mm | Module Dimension: | 160×160 Mm |
|---|---|---|---|
| Viewing Angle: | H.110°, V.50° | Lifespan: | >100000 Hrs |
| Max. Power Consumption: | 300W/m² | Module Resolution: | 16×16 |
| High Light: | NTCIP LED Road Sign,EN12966 LED Road Display,EN12966 Illuminated Street Signs |
||
Product Description

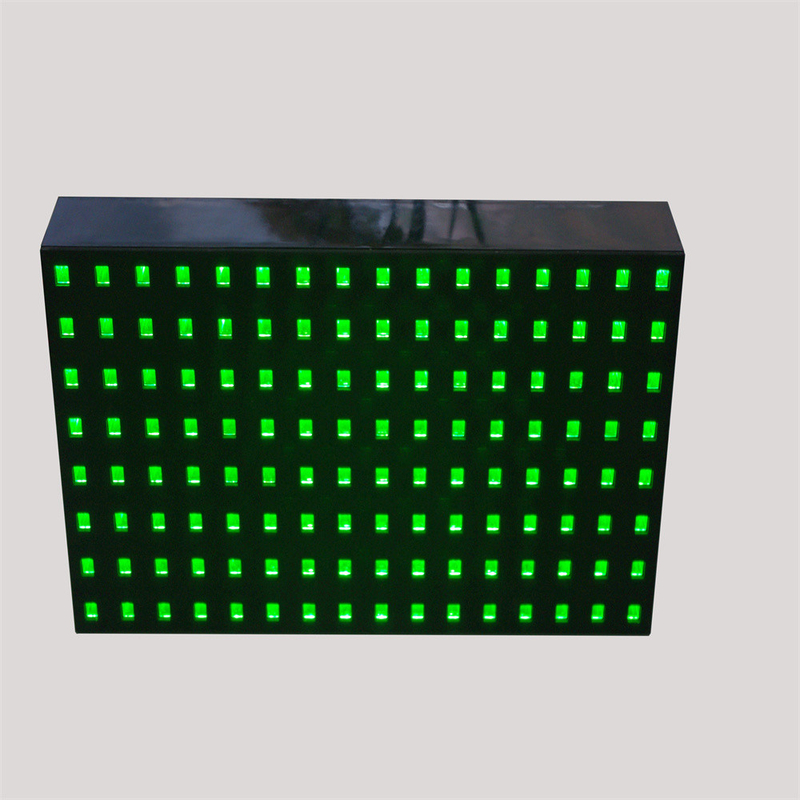

Outdoor EN12966 NTCIP LED Road Sign Illuminated Green Color
outdoor green color led display led road traffic sign EN12966 NTCIP 10000 pixels/m²
PRODUCT FEATURE
1. display module having the versatility and interchangeability can be composed of different display colors and different sizes
according to needs.
2. double-box structure, the formation of internal natural convection mode, so cabinets space temperature reaches equilibrium.
3. module package uses advanced soft silicone, the elastic, strong anti-aging ability.
4. power supply, it is important IC device through the heat sink cooling, not only solve the heat, but also to ensure the
performance is unstable due to mechanical failure when the cooling fan caused.
5. use special wide temperature range of the device, ensure the normal operation of the display at high or low temperatures.
6. use of sophisticated large-scale integrated chip high-speed serial transmission network alternative to discrete parallel
transmission chip, reducing the complexity of the transmission display, reducing the complexity of the control system to
improve the stability of the product.
7. using the network cable to transmit data to reduce the screen body inside the transmission cable, greatly improve the
stability of the display.
8. pixel module junction box and use the "O" ring, with good moisture anti-leakage performance.

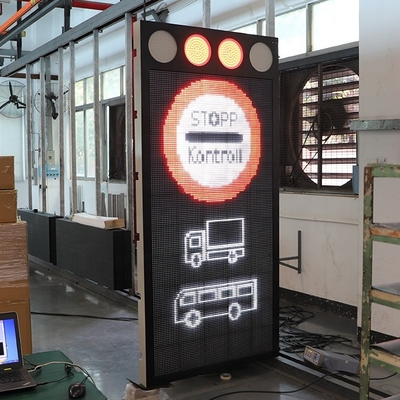

9. using a common network data transmission technology, improve gradation display variable message signs, information boards
enable a better display.
10. using a common network data transmission technology, in favor of compatibility and product upgrading. Help to improve the
response speed of the system variable message signs.
Product Description
low power led display screen, above 50% energy-saving than traditional, but still keep high brightness up to 7500nits,and
competitive price
High Quality Production
YAHAM use all its raw metarials from ISO certificated products. YAHAM quality staff check all raw metarials before&after all
processes to meet quality requirements.
Competitive Price
YAHAM believes to give competitive prices, it should push its own suppliers for competitive prices. YAHAM audit, bargain with
its suppliers on behalf of you to reflect decreased prices.
| Item | YHT-VMS-D10 | YHT-VMS-D16 | YHT-VMS-D25 | YHT-VMS-D31.25 |
| Pixel pitch | 10mm | 16mm | 25mm | 31.25mm |
| LED type | 346 DIP | 510 DIP | 510 DIP | 510 DIP |
| Module dimension | 160×160 mm | 256×256 mm | 200×200 mm | 250×125 mm |
| Module resolution | 16×16 | 16×16 | 8×8 | 8×4 |
| Cabinet material | 2mm aluminum Alloy | |||
| Screen weight | 65kg/m² | 65kg/m² | 65kg/m² | 65kg/m² |
| Cabinet dimension | 960×960 mm | 1024×1024 mm | 1000×1000 mm | 1000×1000 mm |
| Brightness | L3: EN12966 (Red: >3100nits, Green>3720nits,Blue>1240nits, Amber>7440nits, | |||
| Driving method | 4S | Static | Static | Static |
| Brightness adjustment | 32/256 | 32/256 | 32/256 | 32/256 |
| Color coordinates | / | C2: EN12966 | C2: EN12966 | C2: EN12966 |
| Viewing angle | H.110°, V.50° | H.30°, V.30°(B6:EN12966) | ||
| Contrast ratio | / | R3: EN12966 | R3: EN12966 | R3: EN12966 |
| Refresh rate | >90+ Hz | >90+ Hz | >90+ Hz | >90+ Hz |
| Display control | Asynchronous control system available | |||
| Signal transfer | Cat 5 Network Cable, RS232,RS485 optional | |||
| Display capacity | Text, image, graphics animations | |||
| Lifespan | >100000 hrs | >100000 hrs | >100000 hrs | >100000 hrs |
| Power supply | 12-24v /220v | 12-24v /220v | 12-24v /220v | 12-24v /220v |
| Max. Power consumption | 300W/m² | 200W/m² | 200W/m² | 200W/m² |
| Avg. Power consumption | 100W/m² | 70W/m² | 70W/m² | 70W/m² |
| Operation temperature | -25~ 60°C | |||
| Storage temperature | -40~ 80°C | -40~ 80°C | -40~ 80°C | -40~ 80°C |
| Operating humidity | 10%~ 90% | 10%~ 90% | 10%~ 90% | 10%~ 90% |
| Store humidity | 15%~ 95% | 15%~ 95% | 15%~ 95% | 15%~ 95% |
| Protection level | IP56(P3:12966) | IP56(P3:12966) | IP56(P3:12966) | IP56(P3:12966) |
