VMS P25 LED Traffic Signs long Lifespan Guidance Message Display
Product Details:
| Place of Origin: | shenzhen，china |
| Brand Name: | YAHAM |
| Certification: | EN12966、NTCIP |
| Model Number: | YHT-VMS-D25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 12 Square Meter/Square Meters |
|---|---|
| Price: | $1200-2000 Square Meter/Square Meters |
| Packaging Details: | POLY WOODEN CASE |
| Delivery Time: | 32-45 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3200 Square Meter/Square Meters Per Month |
|
Detail Information |
|||
| Pixel Pitch: | 25mm | LED Type: | 510 DIP |
|---|---|---|---|
| Pixel Density: | 1600 Pixels/m² | Module Dimension: | 200×200 Mm |
| Module Resolution: | 8×8 | Viewing Angle: | H.30°, V.30°(B6:EN12966) |
| Refresh Rate: | >90+ Hz | Operation Temperature: | -25~ 60°C |
| High Light: | P25 LED Traffic Signs,VMS LED Traffic Signs,P25 LED Message Display |
||
Product Description

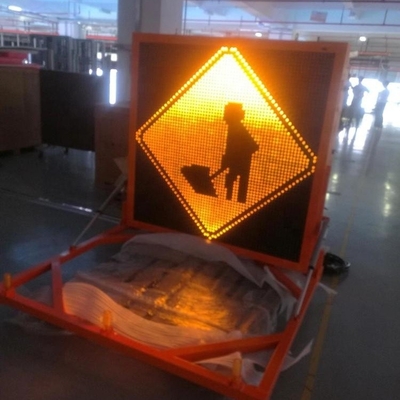

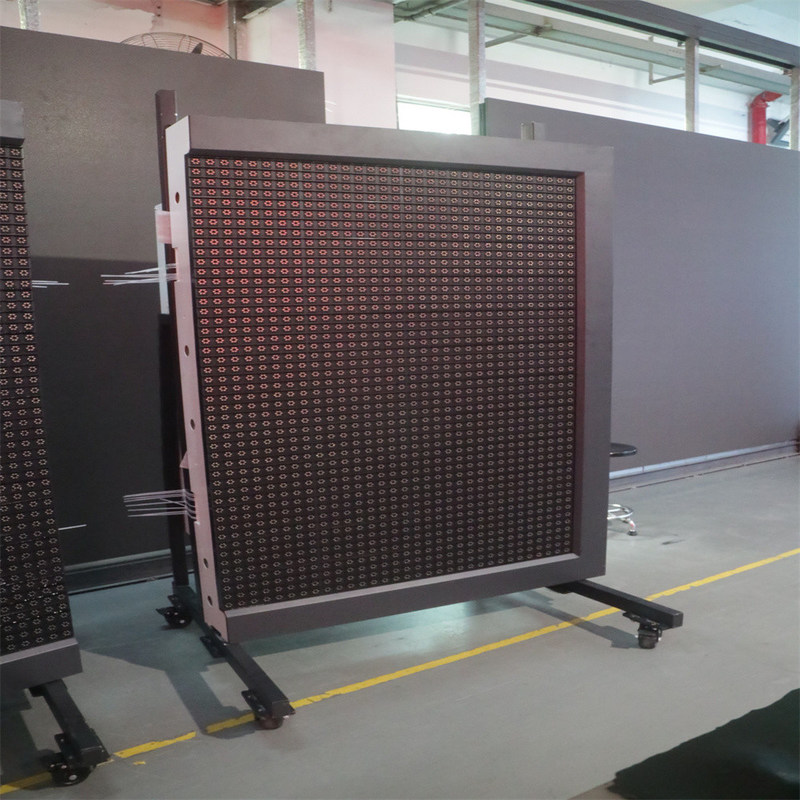

VMS P25 LED Traffic Signs Long Lifespan Guidance Message Display
Outdoor waterproof vms traffic guidance led display message sign p25 lifespan >100000 hrs
When there are multiple requests to post VMS messages simultaneously, messages will be prioritized in the following order .YAHAM traffic variable message led display is widely used in highway, city road, highway tunnel road, displaying the road situations info, Traffic command department dispatches information, weather information and so on.
1. use special wide temperature range of the device, ensure the normal operation of the display at high or low temperatures.
2.The control system only with the IPC, and higher reliability.
3. use of sophisticated large-scale integrated chip high-speed serial transmission network alternative to discrete parallel transmission chip, reducing the complexity of the transmission display, reducing the complexity of the control system to improve the stability of the product.
4. using the network cable to transmit data to reduce the screen body inside the transmission cable, greatly improve the
stability of the display.
5. Construction/Maintenance Activity.
6. Special Events.
7. Environmental.
8. Law Enforcement Message.
Self –error detection
Every single LED is monitored by master card.Control center will receive warning from master card if there is LED off. User are able to monitor display error remotely.
| Item | YHT-VMS-D25 |
| Pixel pitch | 25mm |
| LED type | 510 DIP |
| Pixel density | 1600 pixels/m² |
| Module dimension | 200×200 mm |
| Module resolution | 8×8 |
| Cabinet material | 2mm aluminum Alloy |
| Screen weight | 65kg/m² |
| Cabinet dimension | 1000×1000 mm |
| Brightness | L3: EN12966 (Red: >3100nits, Green>3720nits,Blue>1240nits, Amber>7440nits, |
| Driving method | Static |
| Brightness adjustment | 32/256 |
| Color coordinates | C2: EN12966 |
| Viewing angle | H.30°, V.30°(B6:EN12966) |
| Contrast ratio | R3: EN12966 |
| Refresh rate | >90+ Hz |
| Display control | Asynchronous control system available |
| Signal transfer | Cat 5 Network Cable, RS232,RS485 optional |
| Display capacity | Text, image, graphics animations |
| Lifespan | >100000 hrs |
| Power supply | 12-24v /220v |
| Max. Power consumption | 200W/m² |
| Avg. Power consumption | 70W/m² |
| Operation temperature | -25~ 60°C |
| Storage temperature | -40~ 80°C |
| Operating humidity | 10%~ 90% |
| Store humidity | 15%~ 95% |
| Protection level | IP56(P3:12966) |
