P6 P8 Airport Flight Display Board Shopping Mall Advertising Screen
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Certification: | FCC 2AZPZ-T25 |
| Model Number: | YHT-PID |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 2450 |
| Packaging Details: | Poly wooden case |
| Delivery Time: | 15 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000set/per month |
|
Detail Information |
|||
| Color: | P3,p4,p6,p8,p10mm | Media Available: | Photo |
|---|---|---|---|
| Application: | Airport, Subway, Metro, Bus Station, Train Station | Tube Chip Color: | FULL COLOR |
| Certification: | FCC 2AZPZ-T25 | Name: | Airport Flight Display Board |
| High Light: | P8 Airport Flight Display Board,P6mm Shopping Mall Advertising Screen,P10mm LED Sign Board |
||
Product Description
P6 P8 Airport Flight Display Board Shopping Mall Advertising Screen
Indoor Led Panel Airport Shopping Mall Advertising Screen Control Room Display Cpassenger information display Video Wall
Product Description

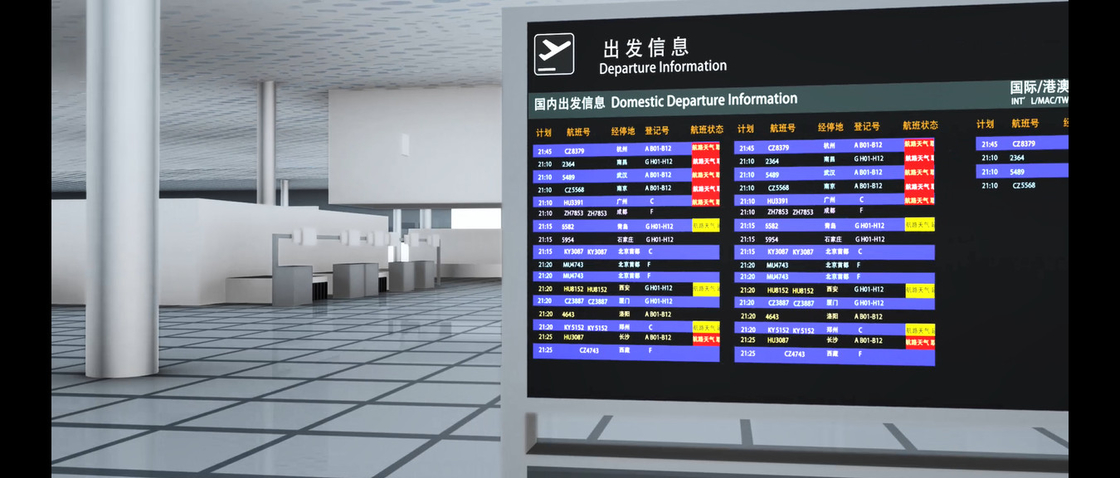

Passenger Information Display
YAHAM passenger information displays are of good quality and easy to install. Based on our intelligent transportation system, we can accurately provide passengers with flight arrival time information and airport navigation information for convenient travel.
Specifications
|
Item |
P6 |
P8 |
P10 |
P12 |
P16 |
|
Pixel pitch |
6mm |
8mm |
10mm |
12mm |
16mm |
|
LED type |
SMD 3 in 1 |
SMD 3 in 1 |
SMD 3 in 1 |
SMD 3 in 1 |
SMD 3 in 1 |
|
Pixel density |
27777 pixels/m² |
15625 pixels/m² |
10000pixels/m² |
6944pixels/m² |
3906 pixels/m² |
|
Pixel configuration |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
|
Module dimension (Wx H) |
192x192 mm |
256×128 mm |
320×160 mm |
192x192 mm |
256×128 mm |
|
Module resolution (Wx H) |
16×8 |
16x16 |
32x16 |
32×32 |
32×32 |
|
Screen weight |
60kg/m² |
60kg/m² |
60kg/m² |
60kg/m² |
60kg/m² |
|
Viewing angle |
H140°/V140° |
H140°/V140° |
H140°/V140° |
H140°/V140° |
H140°/V140° |
|
Best viewing distance |
6m~50m |
8m~80m |
10m~100m |
12m~100m |
16m~100m |
|
Brightness |
5,000~8,000 nits |
6,000~7,000 nits |
5,000~7,000 nits |
5,000~7,000 nits |
5,000~7,000 nits |
|
Gray scale |
≥14bit |
≥14bit |
≥14bit |
≥14bit |
≥14bit |
|
Colour |
68.7 billion color |
68.7 billion color |
68.7 billion color |
68.7 billion color |
68.7 billion color |
|
Color temperature |
5,500k~8,000k |
5,500k~8,000k |
5,500k~8,000k |
5,500k~8,000k |
5,500k~8,000k |
|
Refresh rate |
≥1920Hz |
≥1920Hz |
≥1920Hz |
≥1920Hz |
≥1920Hz |
|
Contrast ratio |
≥4000:1 |
≥2000:1 |
≥2000:1 |
≥2000:1 |
≥2000:1 |
|
Power supply |
100~240V |
100~240V |
100~240V |
100~240V |
100~240V |
|
Storage temperature |
-20°C~60°C |
-20°C~60°C |
-20°C~60°C |
-20°C~60°C |
-20°C~60°C |
|
Operation temperature |
-20°C~50°C |
-20°C~50°C |
-20°C~50°C |
-20°C~50°C |
-20°C~50°C |
|
Operation humidity |
5%~95%RH |
5%~95%RH |
5%~95%RH |
5%~95%RH |
5%~95%RH |
|
Input signa |
DVI/VGA, RGBHV,Composite Video signal, S-VIDEO, YPbPr(HDTV |
||||
|
Driving method |
1/8 dynamic |
1/4 dynamic |
1/2 dynamic |
1/2 dynamic |
static |
|
Max. Power consumption |
600W/m² |
600W/m² |
600W/m² |
600W/m² |
600W/m² |
|
Avg. Power consumption |
240W/m² |
180W/m² |
180W/m² |
180W/m² |
180W/m² |
Product Display
Product advantge
-
Highly customized size and color
Yaham PID is a highly customized product with color availability including monochrome, full-color
and dual-color, it is also available in a variety of sizes that could meet you requirements.
-
Smart monitor
Yaham PID can activate self-diagnosis and report health status, monitor can identify equipment
health status, current message ID, current operating mode, temperature, etc.
-
Indoor / outdoor optional
As a weatherproof product, Yaham PID is sealed for pressure washing and harsh weather,
featuring an Ingress Protection rating up to 67.
-
Electromagnetic interference free
Yaham PID is designed with protection against electromagnetic interference making it more durable
and stable in guiding passengers in public stations.
-
Remote control
Messages and photos are capable of being edited and displayed remotely. To deliver
more intense and readable information, brightness and also be remotely controlled.

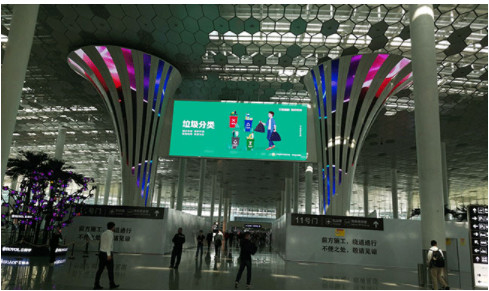

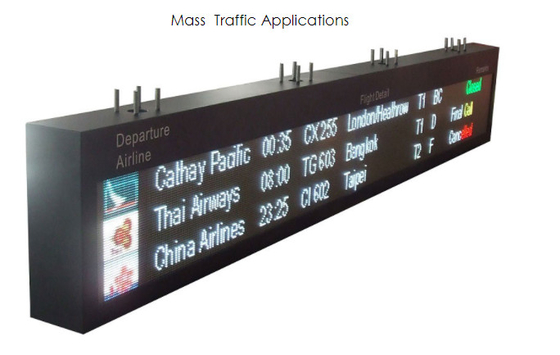

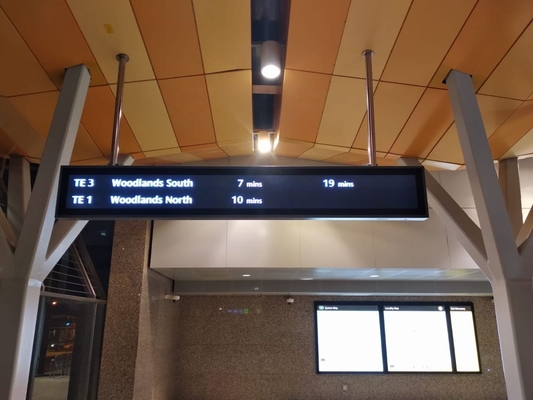

Application scenarios
