VMS Airport Flight Display Board LED Intelligent Navigation System
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Certification: | FCC 2AZPZ-T25 |
| Model Number: | YHT-PID |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 2450 |
| Packaging Details: | Poly wooden case |
| Delivery Time: | 15 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000set/per month |
|
Detail Information |
|||
| Media Available: | Photo | Application: | Airport, Subway, Metro, Bus Station, Train Station |
|---|---|---|---|
| Cabinet Size: | 800*800/1000*1000/1200*1200mm | Dimming Level: | 32 |
| Pixel Configuration: | 1R1G1B | ITEM: | Intelligent Navigation System |
| High Light: | VMS Airport Flight Display Board,1R1G1B Airport Flight Display Board,VMS Intelligent Navigation System |
||
Product Description
VMS Airport Flight Display Board LED Intelligent Navigation System
Airport VMS LED Passenger Information Navigation Sign Terminal Passenger Intelligent Navigation System LED Display
Product Description
Passenger Information Display
YAHAM airport passenger information display adopts nanosecond display technology, and the change time of the LED display in the airport command center is shortened to a very short time, which eliminates the phenomenon of trailing and ghosting when LCD and DLP are processing fast dynamic images. It ensures the effect of real-time image transmission on the display screen. When an emergency occurs, the airport staff can find and solve the problem in time through the dynamic information transmitted by the display screen.
Specifications
|
Item |
P6 |
P8 |
P10 |
P12 |
P16 |
|
Pixel pitch |
6mm |
8mm |
10mm |
12mm |
16mm |
|
LED type |
SMD 3 in 1 |
SMD 3 in 1 |
SMD 3 in 1 |
SMD 3 in 1 |
SMD 3 in 1 |
|
Pixel density |
27777 pixels/m² |
15625 pixels/m² |
10000pixels/m² |
6944pixels/m² |
3906 pixels/m² |
|
Pixel configuration |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
|
Module dimension (Wx H) |
192x192 mm |
256×128 mm |
320×160 mm |
192x192 mm |
256×128 mm |
|
Module resolution (Wx H) |
16×8 |
16x16 |
32x16 |
32×32 |
32×32 |
|
Screen weight |
60kg/m² |
60kg/m² |
60kg/m² |
60kg/m² |
60kg/m² |
|
Viewing angle |
H140°/V140° |
H140°/V140° |
H140°/V140° |
H140°/V140° |
H140°/V140° |
|
Best viewing distance |
6m~50m |
8m~80m |
10m~100m |
12m~100m |
16m~100m |
|
Brightness |
5,000~8,000 nits |
6,000~7,000 nits |
5,000~7,000 nits |
5,000~7,000 nits |
5,000~7,000 nits |
|
Gray scale |
≥14bit |
≥14bit |
≥14bit |
≥14bit |
≥14bit |
|
Colour |
68.7 billion color |
68.7 billion color |
68.7 billion color |
68.7 billion color |
68.7 billion color |
|
Color temperature |
5,500k~8,000k |
5,500k~8,000k |
5,500k~8,000k |
5,500k~8,000k |
5,500k~8,000k |
|
Refresh rate |
≥1920Hz |
≥1920Hz |
≥1920Hz |
≥1920Hz |
≥1920Hz |
|
Contrast ratio |
≥4000:1 |
≥2000:1 |
≥2000:1 |
≥2000:1 |
≥2000:1 |
|
Power supply |
100~240V |
100~240V |
100~240V |
100~240V |
100~240V |
|
Storage temperature |
-20°C~60°C |
-20°C~60°C |
-20°C~60°C |
-20°C~60°C |
-20°C~60°C |
|
Operation temperature |
-20°C~50°C |
-20°C~50°C |
-20°C~50°C |
-20°C~50°C |
-20°C~50°C |
|
Operation humidity |
5%~95%RH |
5%~95%RH |
5%~95%RH |
5%~95%RH |
5%~95%RH |
|
Input signa |
DVI/VGA, RGBHV,Composite Video signal, S-VIDEO, YPbPr(HDTV |
||||
|
Driving method |
1/8 dynamic |
1/4 dynamic |
1/2 dynamic |
1/2 dynamic |
static |
|
Max. Power consumption |
600W/m² |
600W/m² |
600W/m² |
600W/m² |
600W/m² |
|
Avg. Power consumption |
240W/m² |
180W/m² |
180W/m² |
180W/m² |
180W/m² |

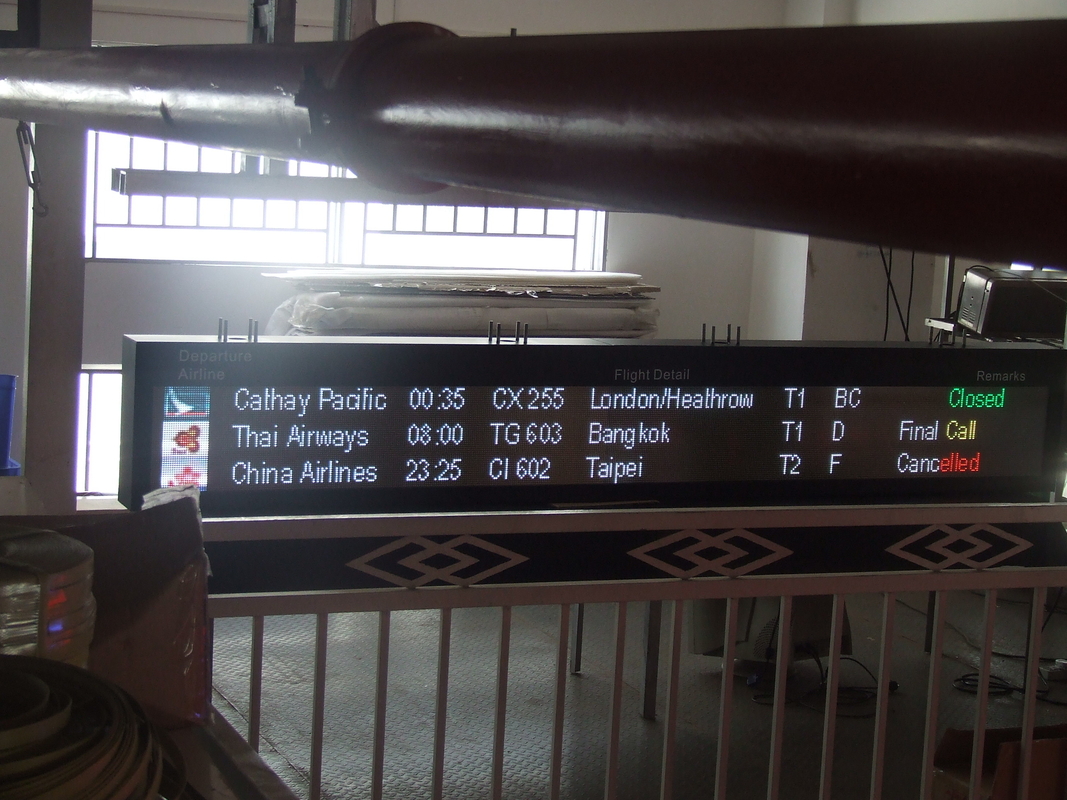

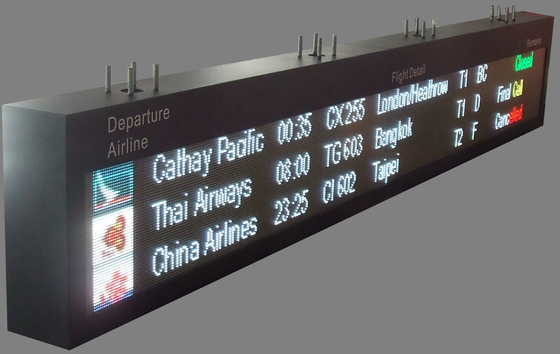

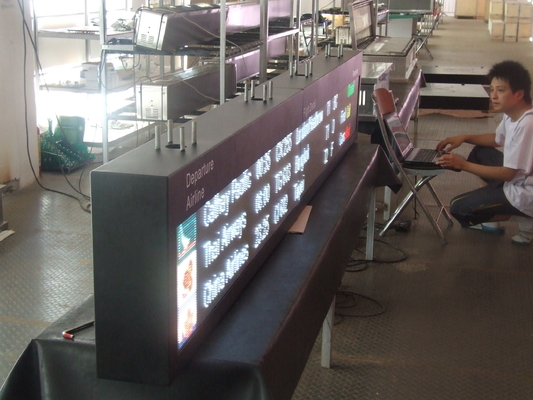

Product Display
Product advantge
-
Highly customized size and color
Yaham PID is a highly customized product with color availability including monochrome, full-color
and dual-color, it is also available in a variety of sizes that could meet you requirements.
-
Smart monitor
Yaham PID can activate self-diagnosis and report health status, monitor can identify equipment
health status, current message ID, current operating mode, temperature, etc.
-
Indoor / outdoor optional
As a weatherproof product, Yaham PID is sealed for pressure washing and harsh weather,
featuring an Ingress Protection rating up to 67.
-
Electromagnetic interference free
Yaham PID is designed with protection against electromagnetic interference making it more durable
and stable in guiding passengers in public stations.
-
Remote control
Messages and photos are capable of being edited and displayed remotely. To deliver
more intense and readable information, brightness and also be remotely controlled.

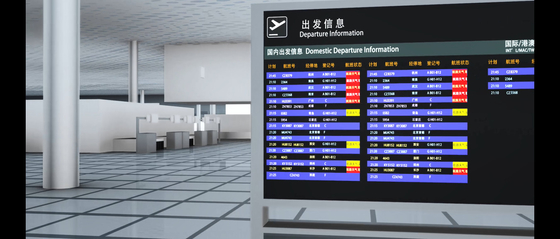

Application scenarios
