IP65 Airport Flight Display Board Passenger Assistance System
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Certification: | FCC 2AZPZ-T25 |
| Model Number: | YHT-PID |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 2450 |
| Packaging Details: | Poly wooden case |
| Delivery Time: | 15 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000set/per month |
|
Detail Information |
|||
| Media Available: | Photo | Cabinet Size: | 800*800/1000*1000/1200*1200mm |
|---|---|---|---|
| Power Supply: | 110-230AV/12V-24V DC | Ingress Protection: | IP65 |
| Name: | Passenger Information Display | Pixel Configuration: | 1R1G1B |
| High Light: | IP65 Airport Flight Display Board,FCC Airport Flight Display Board,IP65 Passenger Information Display System |
||
Product Description
IP65 Airport Flight Display Board Passenger Assistance System
Airport Central Commander Led Display Airport Operation Assistance System Passenger Information Information Display
Product Description
Passenger Information Display
Airports frequently sell ad space to third party vendors, and YAHAM LED screens are the perfect way to display advertisements. With a digital approach, you can broadcast static and video ads, and you also have the flexibility to change content as needed. You can also use a slideshow to display multiple advertisements from one dynamic, high-definition screen. Learn more about our quality airport LED displays and request a quote from Neoti today. We can help you develop a user-friendly system that enhances the traveler experience from departure to arrival.
Specifications
|
Item |
P6 |
P8 |
P10 |
P12 |
P16 |
|
Pixel pitch |
6mm |
8mm |
10mm |
12mm |
16mm |
|
LED type |
SMD 3 in 1 |
SMD 3 in 1 |
SMD 3 in 1 |
SMD 3 in 1 |
SMD 3 in 1 |
|
Pixel density |
27777 pixels/m² |
15625 pixels/m² |
10000pixels/m² |
6944pixels/m² |
3906 pixels/m² |
|
Pixel configuration |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
|
Module dimension (Wx H) |
192x192 mm |
256×128 mm |
320×160 mm |
192x192 mm |
256×128 mm |
|
Module resolution (Wx H) |
16×8 |
16x16 |
32x16 |
32×32 |
32×32 |
|
Screen weight |
60kg/m² |
60kg/m² |
60kg/m² |
60kg/m² |
60kg/m² |
|
Viewing angle |
H140°/V140° |
H140°/V140° |
H140°/V140° |
H140°/V140° |
H140°/V140° |
|
Best viewing distance |
6m~50m |
8m~80m |
10m~100m |
12m~100m |
16m~100m |
|
Brightness |
5,000~8,000 nits |
6,000~7,000 nits |
5,000~7,000 nits |
5,000~7,000 nits |
5,000~7,000 nits |
|
Gray scale |
≥14bit |
≥14bit |
≥14bit |
≥14bit |
≥14bit |
|
Colour |
68.7 billion color |
68.7 billion color |
68.7 billion color |
68.7 billion color |
68.7 billion color |
|
Color temperature |
5,500k~8,000k |
5,500k~8,000k |
5,500k~8,000k |
5,500k~8,000k |
5,500k~8,000k |
|
Refresh rate |
≥1920Hz |
≥1920Hz |
≥1920Hz |
≥1920Hz |
≥1920Hz |
|
Contrast ratio |
≥4000:1 |
≥2000:1 |
≥2000:1 |
≥2000:1 |
≥2000:1 |
|
Power supply |
100~240V |
100~240V |
100~240V |
100~240V |
100~240V |
|
Storage temperature |
-20°C~60°C |
-20°C~60°C |
-20°C~60°C |
-20°C~60°C |
-20°C~60°C |
|
Operation temperature |
-20°C~50°C |
-20°C~50°C |
-20°C~50°C |
-20°C~50°C |
-20°C~50°C |
|
Operation humidity |
5%~95%RH |
5%~95%RH |
5%~95%RH |
5%~95%RH |
5%~95%RH |
|
Input signa |
DVI/VGA, RGBHV,Composite Video signal, S-VIDEO, YPbPr(HDTV |
||||
|
Driving method |
1/8 dynamic |
1/4 dynamic |
1/2 dynamic |
1/2 dynamic |
static |
|
Max. Power consumption |
600W/m² |
600W/m² |
600W/m² |
600W/m² |
600W/m² |
|
Avg. Power consumption |
240W/m² |
180W/m² |
180W/m² |
180W/m² |
180W/m² |

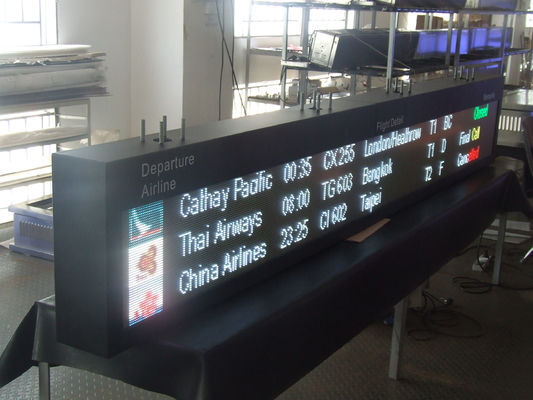

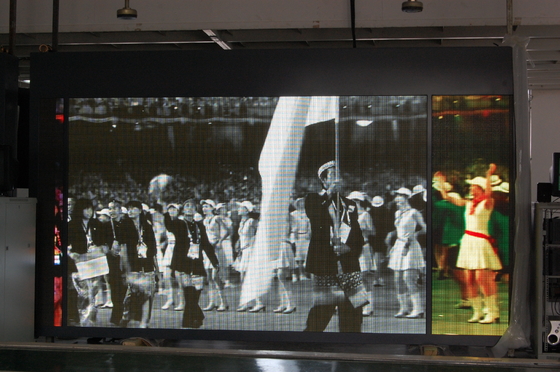

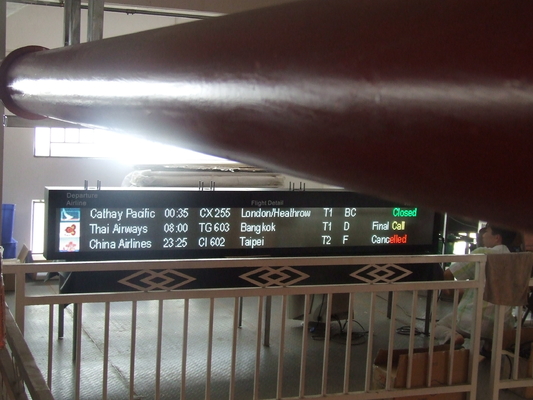

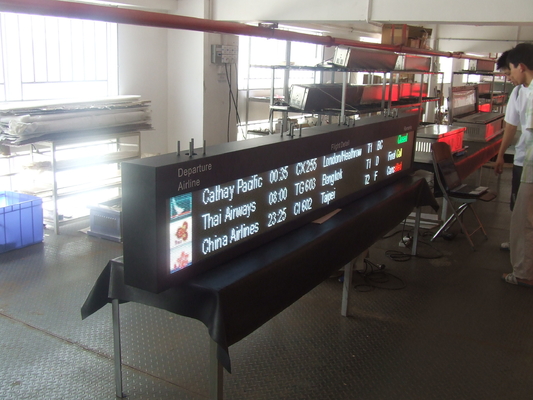

Product Display
Product advantge
-
Highly customized size and color
Yaham PID is a highly customized product with color availability including monochrome, full-color
and dual-color, it is also available in a variety of sizes that could meet you requirements.
-
Smart monitor
Yaham PID can activate self-diagnosis and report health status, monitor can identify equipment
health status, current message ID, current operating mode, temperature, etc.
-
Indoor / outdoor optional
As a weatherproof product, Yaham PID is sealed for pressure washing and harsh weather,
featuring an Ingress Protection rating up to 67.
-
Electromagnetic interference free
Yaham PID is designed with protection against electromagnetic interference making it more durable
and stable in guiding passengers in public stations.
-
Remote control
Messages and photos are capable of being edited and displayed remotely. To deliver
more intense and readable information, brightness and also be remotely controlled.

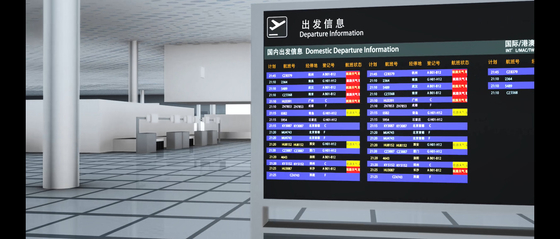

Application scenarios
