P6 P12 Airport Flight Information Display for Traveler Passenger
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Certification: | FCC 2AZPZ-T25 |
| Model Number: | YHT-PID |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 2450 |
| Packaging Details: | Poly wooden case |
| Delivery Time: | 15 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000set/per month |
|
Detail Information |
|||
| Tube Chip Color: | FULL COLOR | Cabinet Size: | 800*800/1000*1000/1200*1200mm |
|---|---|---|---|
| Material: | Aluminum Alloy | Dimming Level: | 32 |
| High Light: | P12 Airport Flight Information Display,P16 Flight Information Display,P6 Flight Information Display Screen |
||
Product Description
P6 P12 Airport Flight Information Display For Traveler Passenger
Airport Traveler Passenger Information Navigation Led Display Terminal Led Digital Signage Smart Flight Reminder
Product Description

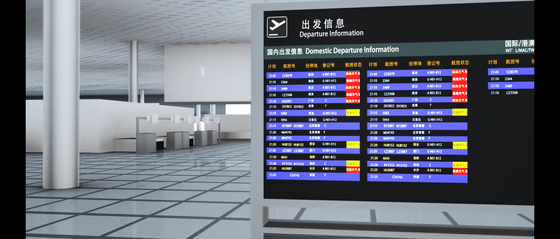

Passenger Information Display
An airport can be a difficult place to navigate, especially for passengers who have never traveled through that particular airport before. Digital signage is an eye-catching way to inform visitors where to go and what to do. From instructions at security checkpoints to important flight information, airport LED displays provide several crucial functions.
Specifications
|
Item |
P6 |
P8 |
P10 |
P12 |
P16 |
|
Pixel pitch |
6mm |
8mm |
10mm |
12mm |
16mm |
|
LED type |
SMD 3 in 1 |
SMD 3 in 1 |
SMD 3 in 1 |
SMD 3 in 1 |
SMD 3 in 1 |
|
Pixel density |
27777 pixels/m² |
15625 pixels/m² |
10000pixels/m² |
6944pixels/m² |
3906 pixels/m² |
|
Pixel configuration |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
|
Module dimension (Wx H) |
192x192 mm |
256×128 mm |
320×160 mm |
192x192 mm |
256×128 mm |
|
Module resolution (Wx H) |
16×8 |
16x16 |
32x16 |
32×32 |
32×32 |
|
Screen weight |
60kg/m² |
60kg/m² |
60kg/m² |
60kg/m² |
60kg/m² |
|
Viewing angle |
H140°/V140° |
H140°/V140° |
H140°/V140° |
H140°/V140° |
H140°/V140° |
|
Best viewing distance |
6m~50m |
8m~80m |
10m~100m |
12m~100m |
16m~100m |
|
Brightness |
5,000~8,000 nits |
6,000~7,000 nits |
5,000~7,000 nits |
5,000~7,000 nits |
5,000~7,000 nits |
|
Gray scale |
≥14bit |
≥14bit |
≥14bit |
≥14bit |
≥14bit |
|
Colour |
68.7 billion color |
68.7 billion color |
68.7 billion color |
68.7 billion color |
68.7 billion color |
|
Color temperature |
5,500k~8,000k |
5,500k~8,000k |
5,500k~8,000k |
5,500k~8,000k |
5,500k~8,000k |
|
Refresh rate |
≥1920Hz |
≥1920Hz |
≥1920Hz |
≥1920Hz |
≥1920Hz |
|
Contrast ratio |
≥4000:1 |
≥2000:1 |
≥2000:1 |
≥2000:1 |
≥2000:1 |
|
Power supply |
100~240V |
100~240V |
100~240V |
100~240V |
100~240V |
|
Storage temperature |
-20°C~60°C |
-20°C~60°C |
-20°C~60°C |
-20°C~60°C |
-20°C~60°C |
|
Operation temperature |
-20°C~50°C |
-20°C~50°C |
-20°C~50°C |
-20°C~50°C |
-20°C~50°C |
|
Operation humidity |
5%~95%RH |
5%~95%RH |
5%~95%RH |
5%~95%RH |
5%~95%RH |
|
Input signa |
DVI/VGA, RGBHV,Composite Video signal, S-VIDEO, YPbPr(HDTV |
||||
|
Driving method |
1/8 dynamic |
1/4 dynamic |
1/2 dynamic |
1/2 dynamic |
static |
|
Max. Power consumption |
600W/m² |
600W/m² |
600W/m² |
600W/m² |
600W/m² |
|
Avg. Power consumption |
240W/m² |
180W/m² |
180W/m² |
180W/m² |
180W/m² |
Product Display
Product advantge
-
Highly customized size and color
Yaham PID is a highly customized product with color availability including monochrome, full-color
and dual-color, it is also available in a variety of sizes that could meet you requirements.
-
Smart monitor
Yaham PID can activate self-diagnosis and report health status, monitor can identify equipment
health status, current message ID, current operating mode, temperature, etc.
-
Indoor / outdoor optional
As a weatherproof product, Yaham PID is sealed for pressure washing and harsh weather,
featuring an Ingress Protection rating up to 67.
-
Electromagnetic interference free
Yaham PID is designed with protection against electromagnetic interference making it more durable
and stable in guiding passengers in public stations.
-
Remote control
Messages and photos are capable of being edited and displayed remotely. To deliver
more intense and readable information, brightness and also be remotely controlled.
Application scenarios
