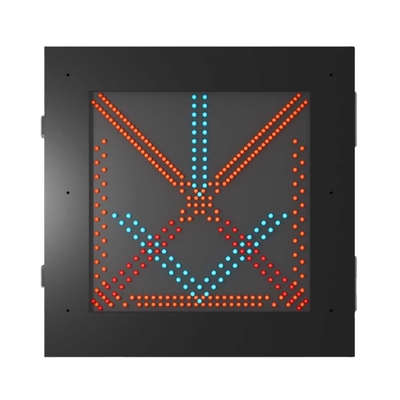

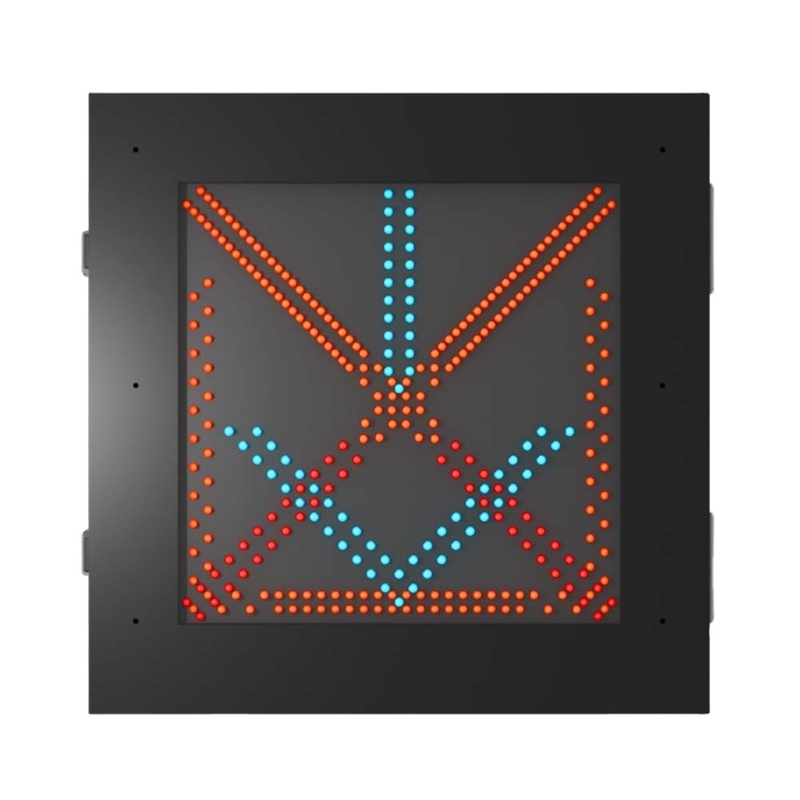

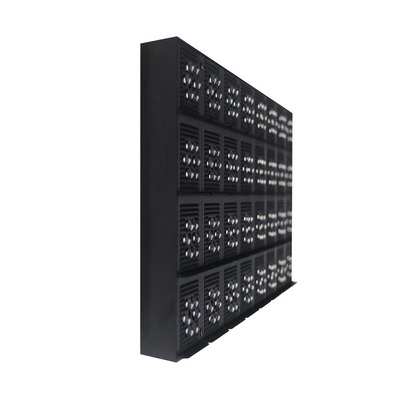

Custom Temporary P16mm LED Traffic Signs Road Safety Attention Stand
Product Details:
| Place of Origin: | shenzhen，china |
| Brand Name: | YAHAM |
| Certification: | EN12966、NTCIP |
| Model Number: | YHT-VMS-D16 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 16 Square Meter/Square Meters |
|---|---|
| Price: | $1200-2000 Square Meter/Square Meters |
| Packaging Details: | POLY WOODEN CASE |
| Delivery Time: | 31-40 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3300 Square Meter/Square Meters Per Month |
|
Detail Information |
|||
| Pixel Pitch: | 16mm | LED Type: | 510 DIP |
|---|---|---|---|
| Pixel Density: | 3906 Pixels/m² | Module Dimension: | 256×256 Mm |
| Module Resolution: | 16×16 | Cabinet Material: | 2mm Aluminum Alloy |
| Viewing Angle: | H.30°, V.30°(B6:EN12966) | Display Control: | Asynchronous Control System Available |
| High Light: | P16mm LED Traffic Signs,200W LED Traffic Signs,P16mm Temporary Traffic Sign |
||
Product Description
Custom Temporary P16mm LED Traffic Signs Road Safety Attention Stand
Custom safety attention road led stand temporary traffic sign p16mm 200W/m²
EN12966/NTCIP ITS P16 Outdoor LED Variable Message Sign, LED Traffic Display Board
YAHAM variable message signs and traffic guidance equipment traffic information dissemination, which is based on LED lighting device shows the effect of the basic traffic information display unit of a display device with graphics and text.
According to the instruction information traffic, weather and dispatching department, the operator can be released to the variable information boards of various notices and information to effectively induct traffic flow, improve transport capacity of the road network, the safety of the driver driving fast provide excellent service.
1. The control system only with the IPC, and higher reliability.
2. use of sophisticated large-scale integrated chip high-speed serial transmission network alternative to discrete parallel transmission chip, reducing the complexity of the transmission display, reducing the complexity of the control system to improve the stability of the product.
3. using the network cable to transmit data to reduce the screen body inside the transmission cable, greatly improve the stability of the display.
4. using a common network data transmission technology, improve gradation display variable message signs, information boards enable a better display.
Generally speaking, variable message sign is used to communicate in realtime with motorists. variable message sign must address current conditions on the roadway by being dynamic, accurate, timely and understandable.
High Quality Production
YAHAM use all its raw metarials from ISO certificated products. YAHAM quality staff check all raw metarials before&after all processes to meet quality requirements.
Competitive Price
YAHAM believes to give competitive prices, it should push its own suppliers for competitive prices. YAHAM audit, bargain with its suppliers on behalf of you to reflect decreased prices.
| Item | YHT-VMS-D12 | YHT-VMS-D16 | YHT-VMS-D20 | YHT-VMS-D31.25 |
| Pixel pitch | 12mm | 16mm | 20mm | 31.25mm |
| LED type | 346 DIP | 510 DIP | 510 DIP | 510 DIP |
| Pixel density | 3944 pixels/m² | 3906 pixels/m² | 2500 pixels/m² | 1024 pixels/m² |
| Module dimension | 192×192 mm | 256×256 mm | 320×160 mm | 250×125 mm |
| Module resolution | 16×16 | 16×16 | 16×8 | 8×4 |
| Cabinet material | 2mm aluminum Alloy | |||
| Screen weight | 65kg/m² | 65kg/m² | 65kg/m² | 65kg/m² |
| Cabinet dimension | 960×960 mm | 1024×1024 mm | 960×960 mm | 1000×1000 mm |
| Brightness | L3: EN12966 (Red: >3100nits, Green>3720nits,Blue>1240nits, Amber>7440nits, | |||
| Driving method | 2S | Static | Static | Static |
| Brightness adjustment | 32/256 | 32/256 | 32/256 | 32/256 |
| Color coordinates | / | C2: EN12966 | C2: EN12966 | C2: EN12966 |
| Viewing angle | H.110°, V.50° | H.30°, V.30°(B6:EN12966) | ||
| Contrast ratio | / | R3: EN12966 | R3: EN12966 | R3: EN12966 |
| Refresh rate | >90+ Hz | >90+ Hz | >90+ Hz | >90+ Hz |
| Display control | Asynchronous control system available | |||
| Signal transfer | Cat 5 Network Cable, RS232,RS485 optional | |||
| Display capacity | Text, image, graphics animations | |||
| Lifespan | >100000 hrs | >100000 hrs | >100000 hrs | >100000 hrs |
| Max. Power consumption | 300W/m² | 200W/m² | 200W/m² | 200W/m² |
| Avg. Power consumption | 100W/m² | 70W/m² | 70W/m² | 70W/m² |
| Operation temperature | -25~ 60°C | |||
| Storage temperature | -40~ 80°C | -40~ 80°C | -40~ 80°C | -40~ 80°C |
| Operating humidity | 10%~ 90% | 10%~ 90% | 10%~ 90% | 10%~ 90% |
| Store humidity | 15%~ 95% | 15%~ 95% | 15%~ 95% | 15%~ 95% |
