Wireless 346 DIP LED Traffic Signs 10000 Pixels Per Square Meter
Product Details:
| Place of Origin: | shenzhen，china |
| Brand Name: | YAHAM |
| Certification: | EN12966、NTCIP |
| Model Number: | YHT-VMS-D10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 13 Square Meter/Square Meters |
|---|---|
| Price: | $1200-2000 Square Meter/Square Meters |
| Packaging Details: | POLY WOODEN CASE |
| Delivery Time: | 30-40 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3700 Square Meter/Square Meters Per Month |
|
Detail Information |
|||
| Pixel Pitch: | 10mm | LED Type: | 346 DIP |
|---|---|---|---|
| Module Dimension: | 160×160 Mm | Module Resolution: | 16×16 |
| Lifespan: | >100000 Hrs | Refresh Rate: | >90+ Hz |
| Store Humidity: | 15%~ 95% | Protection Level: | IP56(P3:12966) |
| High Light: | 346 DIP LED Traffic Signs,10mm LED Traffic Signs,346 DIP LED Traffic Message Board |
||
Product Description

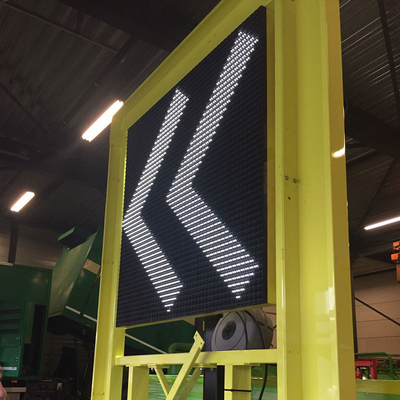

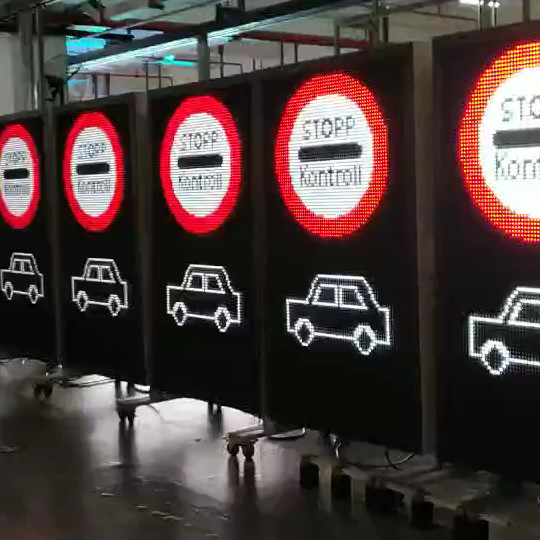

Wireless 346 DIP LED Traffic Signs 10000 Pixels Per Square Meter
Led traffic message board wireless controlled led variable message signs 10000 pixels/m²
1.display module having the versatility and interchangeability can be composed of different display colors and different sizes according to needs.
2. use special wide temperature range of the device, ensure the normal operation of the display at high or low temperatures.
3.The control system only with the IPC, and higher reliability.
4. use of sophisticated large-scale integrated chip high-speed serial transmission network alternative to discrete parallel transmission chip, reducing the complexity of the transmission display, reducing the complexity of the control system to improve the stability of the product.
5. using the network cable to transmit data to reduce the screen body inside the transmission cable, greatly improve the stability of the display.
6.double-box structure, the formation of internal natural convection mode, so cabinets space temperature reaches equilibrium.
7. pixel module junction box and use the "O" ring, with good moisture anti-leakage performance.
8. module package uses advanced soft silicone, the elastic, strong anti-aging ability.
9. power supply, it is important IC device through the heat sink cooling, not only solve the heat, but also to ensure the performance is unstable due to mechanical failure when the cooling fan caused.
Short Delivery Term
YAHAM manufactures all orders according to customer expectations. YAHAM realizes the importance of short delivery terms for customers because of that YAHAM aims to manufacture all his orders within promised dates.
High Quality Production
YAHAM use all its raw metarials from ISO certificated products. YAHAM quality staff check all raw metarials before&after all processes to meet quality requirements.
| Item | YHT-VMS-D10 |
| Pixel pitch | 10mm |
| LED type | 346 DIP |
| Pixel density | 10000 pixels/m² |
| Module dimension | 160×160 mm |
| Module resolution | 16×16 |
| Cabinet material | 2mm aluminum Alloy |
| Screen weight | 65kg/m² |
| Cabinet dimension | 960×960 mm |
| Brightness | L3: EN12966 (Red: >3100nits, Green>3720nits,Blue>1240nits, Amber>7440nits, |
| Driving method | 4S |
| Brightness adjustment | 32/256 |
| Color coordinates | / |
| Viewing angle | H.110°, V.50° |
| Contrast ratio | / |
| Refresh rate | >90+ Hz |
| Display control | Asynchronous control system available |
| Signal transfer | Cat 5 Network Cable, RS232,RS485 optional |
| Display capacity | Text, image, graphics animations |
| Power supply | 12-24v /220v |
| Max. Power consumption | 300W/m² |
| Avg. Power consumption | 100W/m² |
| Operation temperature | -25~ 60°C |
| Storage temperature | -40~ 80°C |
| Operating humidity | 10%~ 90% |
| Store humidity | 15%~ 95% |
