Custom Light Up P12mm lED vMS signs Triangle Round Square shape
Product Details:
| Place of Origin: | shenzhen，china |
| Brand Name: | YAHAM |
| Certification: | EN12966、NTCIP |
| Model Number: | YHT-VMS-D12 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 12 Square Meter/Square Meters |
|---|---|
| Price: | $1200-2000 Square Meter/Square Meters |
| Packaging Details: | POLY WOODEN CASE |
| Delivery Time: | 32-45 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3300 Square Meter/Square Meters Per Month |
|
Detail Information |
|||
| Pixel Pitch: | 12mm | LED Type: | 346 DIP |
|---|---|---|---|
| Pixel Density: | 3944 Pixels/m² | Module Dimension: | 192×192 Mm |
| Module Resolution: | 16×16 | Operating Humidity: | 10%~ 90% |
| Signal Transfer: | Cat 5 Network Cable, RS232,RS485 Optional | Brightness Adjustment: | 32/256 |
| High Light: | P12mm LED VMS Signs,Light Up LED VMS Signs,P12mm Light Up Road Signs |
||
Product Description

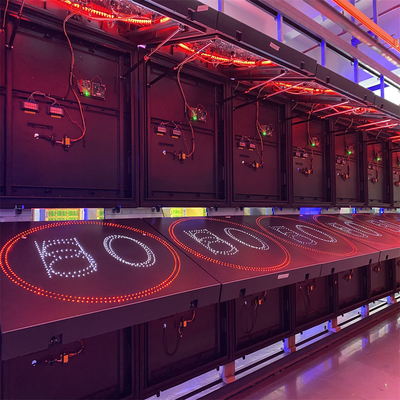

Custom Light Up P12mm LED VMS Signs Triangle Round Square Shape
Custom composite safety warning signs board triangle round square led traffic road sign
Competitive Price
YAHAM believes to give competitive prices, it should push its own suppliers for competitive prices. YAHAM audit,
bargain with its suppliers on behalf of you to reflect decreased prices.
Product Description
low power led display screen, above 50% energy-saving than traditional, but still keep high brightness up to
7500nits,and competitive price
1. using the network cable to transmit data to reduce the screen body inside the transmission cable, greatly improve
the stability of the display.
2. using a common network data transmission technology, improve gradation display variable message signs, information
boards enable a better display.
3.The control system only with the IPC, and higher reliability.
4. use of sophisticated large-scale integrated chip high-speed serial transmission network alternative to discrete parallel transmission chip, reducing the complexity of the transmission display, reducing the complexity of the control system to improve the stability of the product.
5. using a common network data transmission technology, in favor of compatibility and product upgrading. Help to improve the response speed of the system variable message signs.
6. DIP led encapsulation confirm high brightness and good heat dissipation,meet to any weather
| Item | YHT-VMS-D10 | YHT-VMS-D12 |
| Pixel pitch | 10mm | 12mm |
| LED type | 346 DIP | 346 DIP |
| Pixel density | 10000 pixels/m² | 3944 pixels/m² |
| Module dimension | 160×160 mm | 192×192 mm |
| Module resolution | 16×16 | 16×16 |
| Cabinet material | 2mm aluminum Alloy | |
| Screen weight | 65kg/m² | 65kg/m² |
| Cabinet dimension | 960×960 mm | 960×960 mm |
| Brightness | L3: EN12966 (Red: >3100nits, Green>3720nits,Blue>1240nits, Amber>7440nits, | |
| Driving method | 4S | 2S |
| Brightness adjustment | 32/256 | 32/256 |
| Viewing angle | H.110°, V.50° | H.110°, V.50° |
| Refresh rate | >90+ Hz | >90+ Hz |
| Display control | Asynchronous control system available | |
| Signal transfer | Cat 5 Network Cable, RS232,RS485 optional | |
| Display capacity | Text, image, graphics animations | |
| Lifespan | >100000 hrs | >100000 hrs |
| Power supply | 12-24v /220v | 12-24v /220v |
| Max. Power consumption | 300W/m² | 300W/m² |
| Avg. Power consumption | 100W/m² | 100W/m² |
| Operation temperature | -25~ 60°C | |
| Storage temperature | -40~ 80°C | -40~ 80°C |
| Operating humidity | 10%~ 90% | 10%~ 90% |
| Store humidity | 15%~ 95% | 15%~ 95% |
