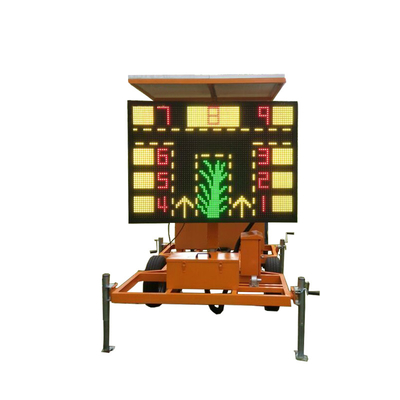

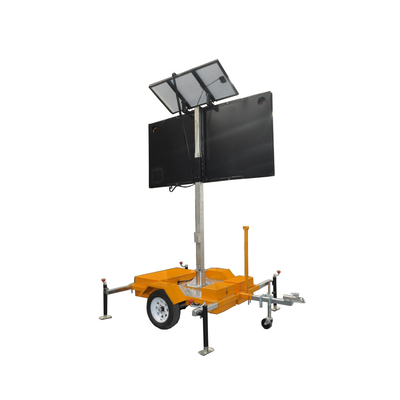

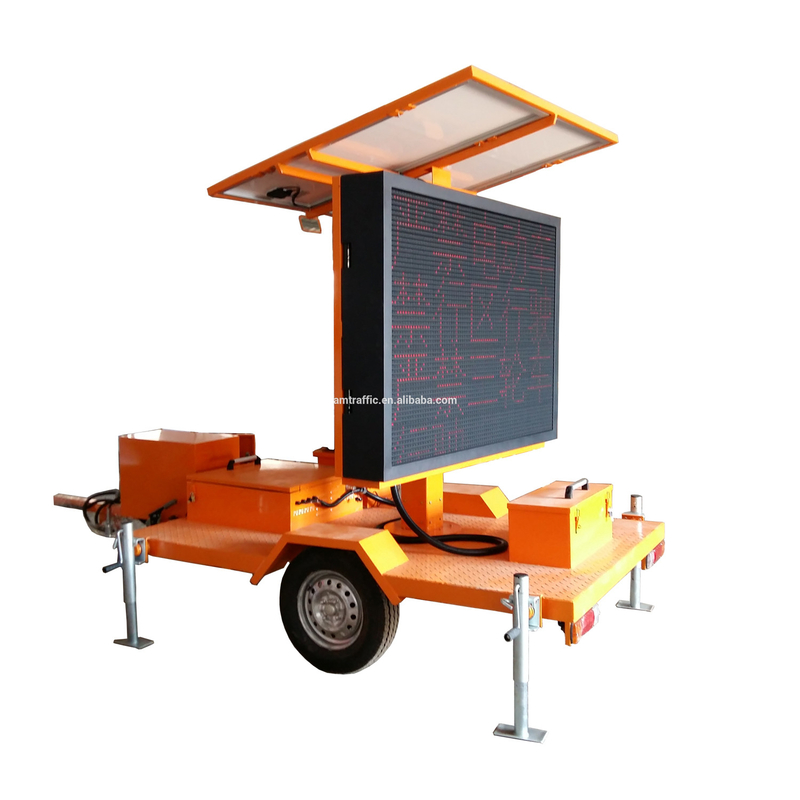

Trailer Mounted Portable VMS Signs LED Changeable Message Signs
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Certification: | 2AZPZ-T25 |
| Model Number: | YHT-VMS-OT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD1500-2000/set |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 30days |
| Payment Terms: | Western Union, T/T, L/C, D/P, D/A, MoneyGram |
| Supply Ability: | 1000set/per month |
|
Detail Information |
|||
| Pixel Pitch: | 10mm,12mm,16mm,20mm,25mm,31.25mm | LED Type: | 3 In 1 SMD + Lens |
|---|---|---|---|
| Cabinet Material: | 2mm Aluminum Alloy | Screen Weight: | 65kg/㎡ |
| Brightness Adjustment: | 32/256 | Color Coordinates: | C2:EN12966 |
| Display Control: | Asynchronous Contral System Available | Display Capacity: | Text,image,graphics Animations |
| Lifespan: | >100000 Hrs | Power Supply: | 12-24V DC/110-230V AC |
| Operation Temperature: | -25~+60℃ | Storage Temperature: | -40~+80℃ |
| Operating Humidity: | 10%~90% | Store Humidity: | 15%~95% |
| Protection Level: | IP56(P3:12966) | Maintenance Method: | Rear Service |
| Compliance: | EN12966 | Feature: | Control System |
| High Light: | Trailer Mounted Portable VMS Signs,EN12966 Portable Changeable Message,P16mm Portable Changeable Message Signs |
||
Product Description
Trailer Mounted Portable VMS Signs LED Changeable Message Signs
Mobile Solar VMS LED Traffic Trailer With Variable Message Signs Led Display Screen Trailer Mounted VMS Boards
Product Description
LED VMS signs offer a range of features that make them a powerful tool for communicating important information to drivers on the roadways. With their high visibility, dynamic content, multiple language support, energy efficiency, easy programming, durability, and modular design, LED VMS signs are becoming an increasingly popular choice for transportation authorities, event organizers, and other organizations looking to communicate effectively with drivers and improve roadway safety.
EN12966 OUTDOOR TRAFFIC LED TRAILER
YAHAM Solar VMS LED Traffic Trailer Integration supporting, and the functions of hydraulic lifting, rotating system, realize the LED screen visual range 360 ° no blind Angle, further enhance communication effect, and is especially suitable for city, assembly, crowded occasion applications such as outdoor sports field.
| ITEM | OT16 | OT20 | OT25 | OT31.25 |
| PIXEL | 16mm | 20 mm | 25 mm | 31.25mm |
| LED TYPE | 3 in 1SMD+LENS | 3 in 1SMD+LENS | 3 in 1SMD+LENS | 3 in 1SMD+LENS |
| PIXEL DENSITY | 3906 pixel/m2 | 2500 pixel/m2 | 1600 pixel/m2 | 1024 pixel/m2 |
| MODULE DIMENSION | 256X128 mm | 320X160 mm | 200 x 200 mm | 250 x 250 mm |
| MODULE RESOLUTION | 16*8 pixels | 16*8 pixels | 8*8 pixels | 8*8 pixels |
| CABINET DIMENSION | 1024*1024mm | 960*960mm | 1000*1000mm | 1000*1000mm |
| CABINET WEIGHT | 65kg | 65kg | 65kg | 65kg |
| ACCESS | FRONT /BACK | FRONT /BACK | FRONT /BACK | FRONT /BACK |
| INGRESS PROTECTION | IP65 | IP65 | IP65 | IP65 |
| BRIGHTNESS | 12400 NITS | 12400 NITS | 12400 NITS | 12400 NITS |
| VIEWING ANGLE | H15/-15 V8/-10 | H15/-15 V8/-10 | H15/-15 V8/-10 | H15/-15 V8/-10 |
| MAX.POWER CONSUMPTION | 250W | 220W | 220W | 220W |
| AVE.POWER CONSUMPTION | 80W | 70W | 70W | 70W |
| DRIVIG METHOD | STATIC | STATIC | STATIC | STATIC |
| DISPLAY CONTROL | Asynchronous control | Asynchronous control | Asynchronous control | Asynchronous control |
| LED LIFESPAN | 100,000 | 100,000 | 100,000 | 100,000 |
- New Integrated Optical Len
- Improved flatness
- High color consistency
- Better contrast ratio
- Effortless replace
- Thinner cabinet
- High stability
- Global positioning system
- Self-diagnosis and failure report
- High protection
- Customized color and sizes
Wireless and remote control
